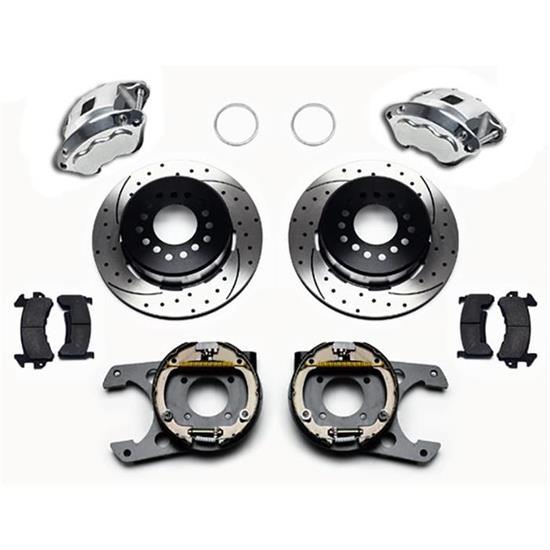

Wilwood 140-12570-D Rear Parking Brake Kit, Polished
Wilwood 140-12570-D Rear Parking Brake Kit, Polished

Wilwood 140-12570-D Rear Parking Brake Kit, Polished

Universal Fit, 12.19 Inch Rotor Diameter, Vented Rotor Type, Two Caliper Pistons, Powder Coated

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-12570-D Rear Parking Brake Kit, Polished
Wilwood 140-12570-D Rear Parking Brake Kit, Polished
Zoomed In Image
Part # UP87435
Save 5%
$824.99
$874.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Two
Caliper Finish:
Powder Coated
MFG. Part #:
140-12570-D
Minimum Recommended Wheel Diameter:
16 Inch
Rotor Thickness:
0.81"
Sold in Quantity:
Kit
Mount Type:
Floating
Total Piston Area:
1.98 sq. in.
Piston Type:
Stainless
Pad Area:
8.7 sq. in.
Pad Volume:
2.9 cu. in.
Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
2 - Black Powder Coat
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No

Info

This is garage sale priced because it was opened and returned.

No Warranty, No Returns on Garage Sale Items



D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines.

The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.

  • 12 bolt
  • Floating mount type
  • Black powder coat caliper
  • Polished finish
  • 12.19" rotor diameter
  • 2.75-2.81 axle offset

Installation Instructions (PDF)



Some parts are not legal for use in California or other states with similar laws/regulations

Specs

Rotor Diameter:
12.19
Rotor Type:
SRP Drilled Rotor & Hat
Caliper Pistons:
Two
Caliper Finish:
Powder Coated
MFG. Part #:
140-12570-D
Minimum Recommended Wheel Diameter:
16 Inch
Sold in Quantity:
Kit
Mount Type:
Floating
Total Piston Area:
1.98 sq. in.
Piston Type:
Stainless
Pad Area:
8.7 sq. in.
Pad Volume:
2.9 cu. in.
Compound:
BP-10
Rotor Style:
SRP Drilled & Slotted
Caliper Type:
2 - Black Powder Coat
Rotor Surface Finish:
Black E-Coat
Rotor Material Type:
Iron
Rotor Width:
0.81"
Vane Count:
32 V
Bedded:
No
Balanced:
No
Some parts are not legal for use in California or other states with similar laws/regulations
