Add to Cart
$778.39
$664.99

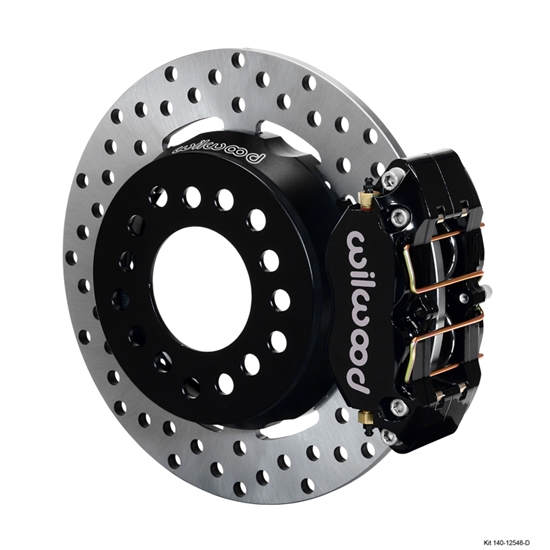

Wilwood 140-12546-D Dynapro Lug Mt Rear Brake Kit, Big Ford New S
Wilwood 140-12546-D Dynapro Lug Mt Rear Brake Kit, Big Ford New S

Wilwood 140-12546-D Dynapro Lug Mt Rear Brake Kit, Big Ford New S

Ford 9", 11.44 Inch Rotor Diameter, Solid Rotor Type, Four Caliper Pistons, Powder Coated

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-12546-D Dynapro Lug Mt Rear Brake Kit, Big Ford New S
Wilwood 140-12546-D Dynapro Lug Mt Rear Brake Kit, Big Ford New S
Zoomed In Image
Part # UP93560
Save 14%
$664.99
$778.39
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Rotor Diameter:
11.44 Inch
Rotor Type:
Solid
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Rotor Thickness:
0.35"
Offset:
2.50"
Mount Type:
Lug
Total Piston Area:
4.80 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.10 cu. in.
Compound:
Composite Metallic
Rotor Style:
Drilled and Slotted
Caliper Type:
Dynapro Lug Mount
Rotor Finish:
Plain
Rotor Material Type:
Alloy Steel
Vane Count:
None
Bedded:
No
Balanced:
No
Hat Type:
Dynamic Drag Hat - Lug Drive
Hat Finish:
Black E-Coat
Hat Bolt Circle 3:
5 x 5.00
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 1:
5 x 4.50
Hat Material Type:
Aluminum
Hat Offset Dimension:
1.59"
GTIN Code:
889545016758

Info

This is garage sale priced because it is an open box item.

No Warranty, No Returns on Garage Sale Items



Wilwood's new Billet Dynapro Lug-Drive Dynamic Stainless Alloy Rotor Brake Kits are especially beneficial to cars that rely heavily on the rear brakes for stopping and any other high speed, heavy weight cars that generate above average rear brake heat. The lug-drive rotor mounting system eliminates the rotor bolts and instead, a large single internal snap-ring retains the rotor in the hat, making assembly and installation literally a snap. This system allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. Spring-loaded, replaceable stainless steel inserts in each lug-drive slot protect the aluminum hat from wear that would otherwise be caused by loading of the stainless steel rotor against the hat when brake torque is applied. Kits are available in Single and Dual caliper configurations.

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
