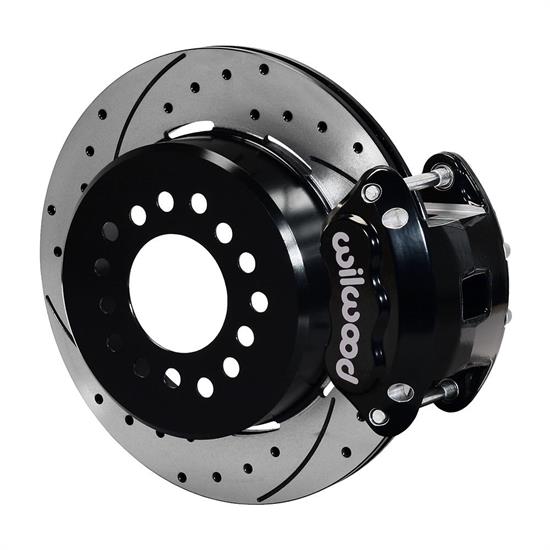

Wilwood 140-12235-D D154 Rear Brake Kit, New Big Ford, Front Mount
Wilwood 140-12235-D D154 Rear Brake Kit, New Big Ford, Front Mount

Wilwood 140-12235-D D154 Rear Brake Kit, New Big Ford, Front Mount

Ford 9", Rear Position, Multi: 5 on 5" | 4.75" | 4.50" Bolt Pattern, 12.19 Inch Rotor Diameter

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-12235-D D154 Rear Brake Kit, New Big Ford, Front Mount
Wilwood 140-12235-D D154 Rear Brake Kit, New Big Ford, Front Mount
Zoomed In Image
We estimate this item will ship on or before December 18th.
Part # 83514012235D
Save 10%
$769.99
$862.39
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Rear
Bolt Pattern:
Multi: 5 on 5" | 4.75" | 4.50"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Two
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
Yes
MFG. Part #:
140-12235-D
Rotor Thickness:
0.81"
Offset:
2.50"
Mount Type:
Floating
Total Piston Area:
1.98 sq. in.
Piston Type:
Stainless
Pad Area:
8.70 sq. in.
Pad Volume:
2.90 cu. in.
Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
D154
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
GTIN Code:
889545015645

Info

D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
