Wilwood 140-11810 Dynalite Radial Mount Midget Inboard Brake Kit

-7%

#83514011810

Wilwood 140-11810 Dynalite Radial Mount Midget Inboard Brake Kit

Name: Wilwood 140-11810 Dynalite Radial Mount Midget Inboard Brake Kit
Brand: Wilwood
SKU: 83514011810
Price: 872.74 USD
Availability: LimitedAvailability
Rating: 4 (1 reviews)

1 Review

3 Questions

The 4 piston calipers are nickel plated and have stainless steel pistons
Hub is made from aluminum with a black anodized finish for added corrosion protection
The lightweight rotors have high durability, long wear, and superior heat control properties

Rotor Width:

0.35 Inch (Round)

$872.74

/each

In Stock

$944.41

Save $71.67

Order soon, only 3 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 10.50 Inch Rotor Diameter, Anodized

The 4 piston calipers are nickel plated and have stainless steel pistons
Hub is made from aluminum with a black anodized finish for added corrosion protection
The lightweight rotors have high durability, long wear, and superior heat control properties
Rotors have a 10.50" diameter and feature a drilled designed for superior head dissipation properties
Features a fully engineered bolt-on brake system for sprint car quick change rears with 3.50 x 38 splined axles

See more details

Key Specs

MFG. Part #	140-11810
Position	Rear
Wheel Bolt Pattern (in.)	Splined
Rotor Diameter	10.50 Inch
Rotor Type	Vented

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11810 Details

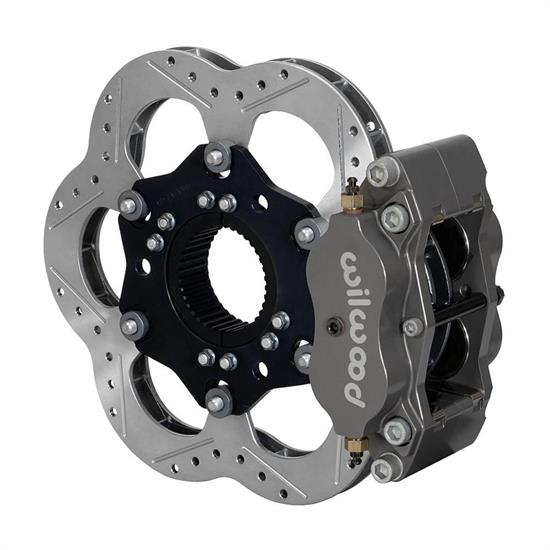

Billet Narrow Dynalite Radial Midget Inboard Kit Features: A fully engineered bolt-on brake system for sprint car quick change rears with 3.50 x 38 splined axles.

Lightweight rotors with high durability, long wear, and superior heat control properties
Radial mount Dynalite nickel plated caliper with Composition Metallic pads, produce superior stopping power and consistent fade-free response
Axle offset: 0

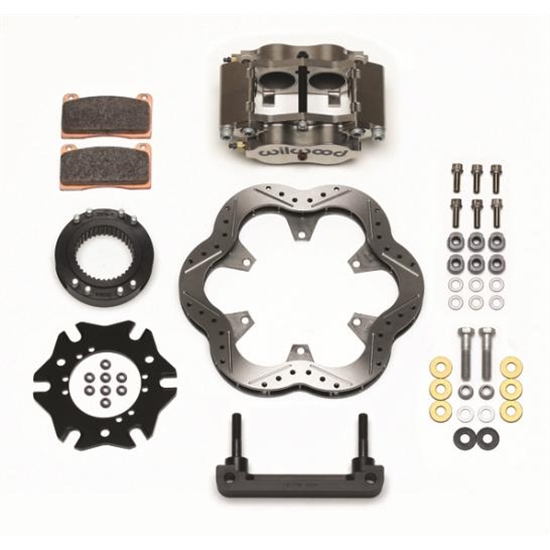

Kit includes Axle Clamp with Dynamic Mount Rotor Adapter assembly with T-nuts and mounting hardware.

Caliper:
- Type: Narrow Dynalite Radial Mount
- Finish: Nickel Plated
- Piston Count: 4
- Piston Type: Stainless
- Pad Compound: CM - Composite Metallic
Rotor:
- Type: Super Alloy
- Style: Drilled
- Finish: Plain
- Material: Stainless
- Diameter: 10.50"
- Width: .780"
- Vane Count: 24 V
- Design Type: Alloy Scalloped
Hub:
- Type: Dynamic
- Material: Aluminum
- Finish: Black Anodize
- Mount Style: Adapter-Dynamic
- Bolt Circle: Splined

Charts

83514011810 Wilwood Brake Kit Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011810)

Everything You Need to Know About Converting Drum Brakes to Disc

Disc Brake Kits Installation Instructions (83514011810)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 140-11810 Specifications

KEY SPECS
MFG. Part #	140-11810
Brand	Wilwood
Position	Rear
Wheel Bolt Pattern (in.)	Splined
Rotor Diameter	10.50 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Anodized
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Scalloped
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	No
Front Rotor Diameter	10.50 Inch
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	Yes
Color	Gray
Spline Count	38
Spline OD	3.50"
Bolt Pattern	Splined
Front Caliper Piston Quantity	4
Front Caliper Finish	Anodized

GENERAL
Sold in Quantity	Kit
GTIN Code	889545014044
Notes	Race Only. Not for Street use.
Rotor Thickness	0.78"
Offset	0"
Axle Flange Offset	0.00"
Mount Type	Radial
Brake Lines Included	No
Caliper Color	Gray

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Nice fit

4.0

10 years ago

T-REY

Spring,texas

Verified

Works great easy assembly don't care for brake rotor clamp to many small items, overall setup worked good first time out.

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

3 Questions • 3 Answers

Sort Questions

What is the part number for the brake pads in this kit?

by Rob

• 7 years ago

1 answer

View Answer

Do Wilwood make a Caliper mounting bracket that suits 5.25" mounting centers which is the common size on all midget diffs?

by Wobbler

• 12 years ago

1 answer

View Answer

Does the caliper Bracket fit 5.25" mounting studs on diff? The PDF instructions state the following: "This kit is designed for direct bolt-on installation to standard inboard midget sidebell with 3.50” mount centers and 2.50” x 38 spline axle." Standard midget inboard side bell has 5.25" mount centers. Also looking at the diagram on the PDF instructions the bracket appears to be for 5.25" mount centres. Could you please confirm what mount centres the bracket suits before I place and order.

by Wobbler

• 12 years ago

1 answer

View Answer

3 of 3 questions shown
