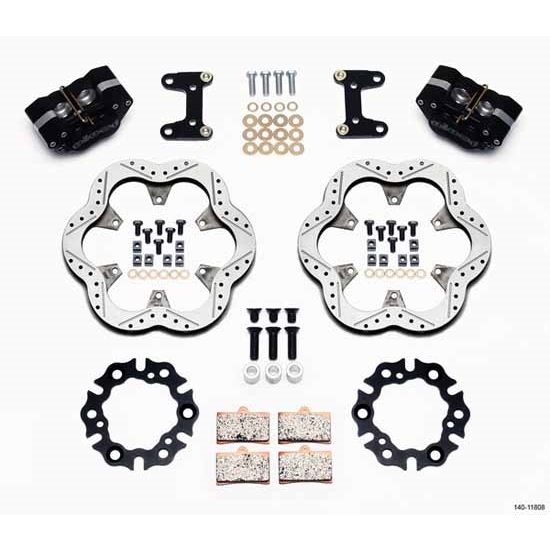

Wilwood 140-11808 Midget Pavement Forward Mount Front Brake Kit, 10.5 Inch
Wilwood 140-11808 Midget Pavement Forward Mount Front Brake Kit, 10.5 Inch

Wilwood 140-11808 Midget Pavement Forward Mount Front Brake Kit, 10.5 Inch

Front Position, 10.50 Inch Rotor Diameter, Vented Rotor Type, Four Caliper Pistons, Gray

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-11808 Midget Pavement Forward Mount Front Brake Kit, 10.5 Inch
Wilwood 140-11808 Midget Pavement Forward Mount Front Brake Kit, 10.5 Inch
Zoomed In Image
We estimate this item will ship on or before October 31st.
Part # 83514011808
Save 9%
$1,302.99
$1,436.18
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Rotor Diameter:
10.50 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Type III Anodized
Color:
Gray
MFG. Part #:
140-11808
Rotor Thickness:
0.78"
Rotor Shape:
Scalloped
Spindle Type:
Factory Disc Spindle
Mount Type:
Lug
Total Piston Area:
2.46 sq. in.
Piston Type:
Stainless
Pad Area:
3.65 sq. in.
Pad Volume:
1.03 cu. in.
Compound:
Composite Metallic
Rotor Style:
Drilled
Caliper Type:
GP320
Rotor Finish:
Natural
Rotor Material Type:
Alloy Steel
Vane Count:
24 Straight Vane
Bedded:
No
Balanced:
No
GTIN Code:
889545014020

Info

The GP320 System features Wilwood's competition proven dynamic rotor mount system, specially treated Super Alloy lightweight steel alloy rotors, and the highly efficient clamping force of the GP320 billet caliper for the most positive and fade-free performance available for sprint racing.Component Features: GP 320 Billet Aluminum 4 Piston Calipers with Four small pistons provide balanced distribution of the pad load for improved response and longer pad wear. Super Alloy Rotors: Unlike ceramic coatings that can flake away from the base metal during high heat cycling, Wilwood's Super Alloy material controls heat transfer and provides a durable surface that can generate high friction for long, trouble-free duty cycles without the need for recoating. Dynamic mounting with Wilwood's t-nut system isolates all thermal stress and distortion at the rotor mounting points caused by the different temperatures and expansion rates between the lightweight alloy steel rotor and the aluminum rotor mount plate. The rotors stay flatter and run truer to eliminate any possibility of pad knock-back or deflection. Dynamic Mount Rotor Plate: Lightweight billet alloy plate is machined with the slots to accept the rotor bolt t-nuts and adapt the rotor directly to 3 bolt sprint hubs. Wilwood 6211-CM Brake Pads A rigid caliper mounting bracket with premium grade fasteners and shim washers are included for secure, deflection free mounting.

Installation Instructions (PDF)
