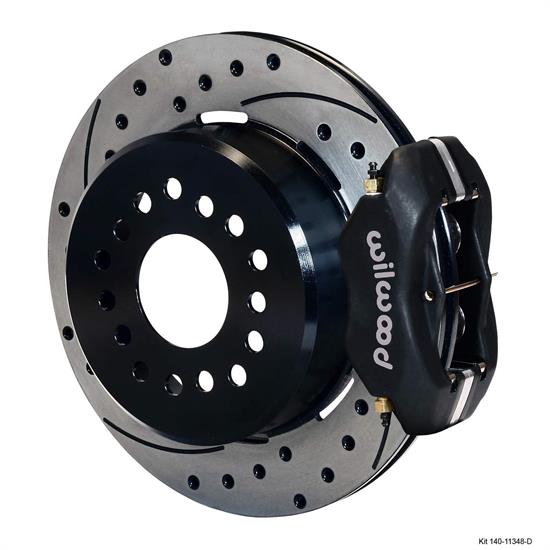

Wilwood 140-11348-D FDLI Pro Series Rear Disc Brake Kit, 1955-57 Chevy
Wilwood 140-11348-D FDLI Pro Series Rear Disc Brake Kit, 1955-57 Chevy

Wilwood 140-11348-D FDLI Pro Series Rear Disc Brake Kit, 1955-57 Chevy

Rear Position, 5 on 4.75" Bolt Pattern, 12.19 Inch Rotor Diameter, Vented Rotor Type, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-11348-D FDLI Pro Series Rear Disc Brake Kit, 1955-57 Chevy
Wilwood 140-11348-D FDLI Pro Series Rear Disc Brake Kit, 1955-57 Chevy
Wilwood 140-11348-D FDLI Pro Series Rear Disc Brake Kit, 1955-57 Chevy
Wilwood 140-11348-D FDLI Pro Series Rear Disc Brake Kit, 1955-57 Chevy
Wilwood 140-11348-D FDLI Pro Series Rear Disc Brake Kit, 1955-57 Chevy
X
Wilwood 140-11348-D FDLI Pro Series Rear Disc Brake Kit, 1955-57 Chevy
Wilwood 140-11348-D FDLI Pro Series Rear Disc Brake Kit, 1955-57 Chevy
Wilwood 140-11348-D FDLI Pro Series Rear Disc Brake Kit, 1955-57 Chevy
Zoomed In Image
We estimate this item will ship on or before October 6th.
Part # 83514011348D
$889.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • 12.19" rotor diameter and will fit 15" wheels
  • Forged billet Dynalite four piston calipers
  • 5 on 4.75" bolt pattern
  • Fits 1955-1957 Chevy's
  • Hidden internal shoe system provides a clean installation

Details

Position:
Rear
Bolt Pattern:
5 on 4.75"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
Yes
MFG. Part #:
140-11348-D
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
0.81"
Offset:
2.34"
Mount Type:
Lug
Total Piston Area:
3.00 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.10 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Forged Dynalite
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
GTIN Code:
889545012644

Info

This group of FDLI Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Application

1955 Chevrolet One-Fifty Series All
w/ OE Drum Brake Spindle
1955 Chevrolet One-Fifty Series w/ Heidts 2 Drop Spindle
1955 Chevrolet Two-Ten Series All
w/ OE Drum Brake Spindle
1955 Chevrolet Two-Ten Series w/ Heidts 2 Drop Spindle
1956 Chevrolet Corvette All
1956 Chevrolet One-Fifty Series All
w/ OE Drum Brake Spindle
1956 Chevrolet One-Fifty Series w/ Heidts 2 Drop Spindle
1956 Chevrolet Two-Ten Series All
w/ OE Drum Brake Spindle
1956 Chevrolet Two-Ten Series w/ Heidts 2 Drop Spindle
1957 Chevrolet One-Fifty Series All
w/ OE Drum Brake Spindle
1957 Chevrolet One-Fifty Series w/ Heidts 2 Drop Spindle
1957 Chevrolet Two-Ten Series All
w/ OE Drum Brake Spindle
1957 Chevrolet Two-Ten Series w/ Heidts 2 Drop Spindle

Charts

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
