Add to Cart
$1,371.99
$1,199.99

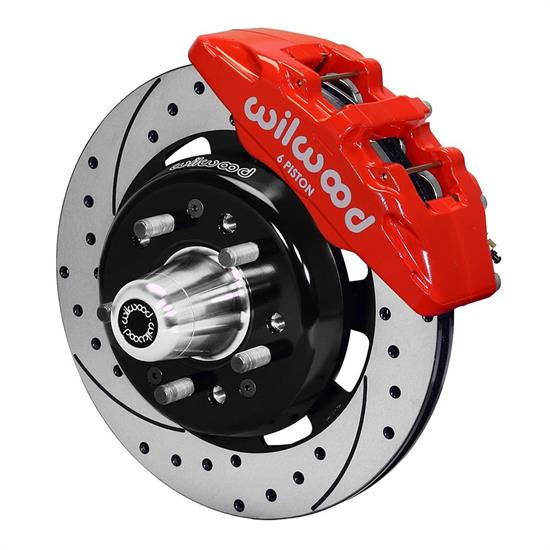

Wilwood 140-10737-DR DP6 12.19 Inch Front Disc Brake Kit, 55-57 C
Wilwood 140-10737-DR DP6 12.19 Inch Front Disc Brake Kit, 55-57 C

Wilwood 140-10737-DR DP6 12.19 Inch Front Disc Brake Kit, 55-57 C

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 12.19 Inch Rotor Diameter, Powder Coated

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-10737-DR DP6 12.19 Inch Front Disc Brake Kit, 55-57 C
Wilwood 140-10737-DR DP6 12.19 Inch Front Disc Brake Kit, 55-57 C
Wilwood 140-10737-DR DP6 12.19 Inch Front Disc Brake Kit, 55-57 C
X
Wilwood 140-10737-DR DP6 12.19 Inch Front Disc Brake Kit, 55-57 C
Zoomed In Image
Part # UP110873
Save 12%
$1,199.99
$1,371.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Red
MFG. Part #:
140-10737-DR
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
0.81"
Stud Diameter:
0.52"
Spindle Type:
Factory Drum Spindle
Mount Type:
Lug
OE Hub Offset:
0.23"
Total Piston Area:
5.06 sq. in.
Piston Type:
Stainless
Pad Area:
7.30 sq. in.
Pad Volume:
2.4 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Dynapro 6
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
Hat Type:
Big Brake Hat - Short Offset
Hat Finish:
Black E-Coat
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 1:
5 x 4.50
Stud Diameter 2:
0.52"
Hat Material Type:
Aluminum
Hat Offset Dimension:
1.43"
GTIN Code:
889545010046

Info

This is garage sale priced because it is an open box item.

No Warranty, No Returns on Garage Sale Items



DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.

Assembly Instructions (PDF)



Wheel Clearance Diagram

Application

1955 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1955 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle
1956 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1956 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle
1957 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1957 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
