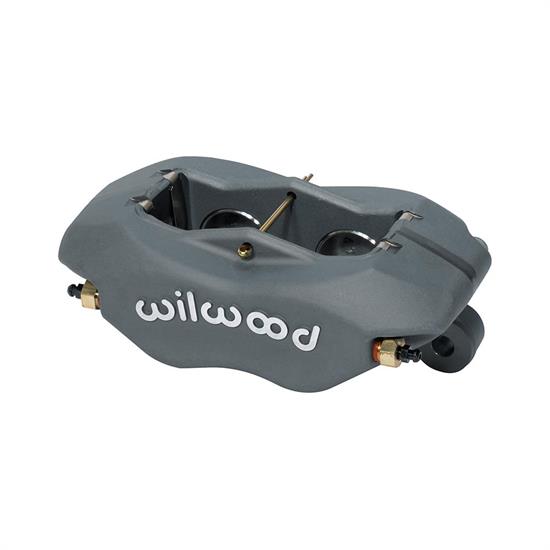

Wilwood 120-6816 Forged Dynalite Caliper, 1.75 Piston / .81 Inch Disc
Wilwood 120-6816 Forged Dynalite Caliper, 1.75 Piston / .81 Inch Disc
Dirt Late Model, Legends, Midget, Modified, Pavement Late Model, Sprint Car, Forged Aluminum
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 120-6816 Forged Dynalite Caliper, 1.75 Piston / .81 Inch Disc
X
Part # 8351206816
$130.50
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Caliper has 4 pistons and a 4.8 square inch area
- Fits .75" - 0.81" wide by 10" - 13.06" diameter rotors
- The type III anodized finish provides excellent corrosion resistance
- Designed to be the strongest calipers in the class and weights starting at 2.80 pounds
- Exclusive innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance
Details
Caliper Pistons:
Four
Piston Diameter:
1.75"
Rotor Thickness:
0.81"
Material Type:
Forged Aluminum
Finish:
Type III Anodized
Rotor Diameter:
13.06 Inch
Mounting Side:
Universal
Bore Size:
1.75"
Caliper Mounting Type:
Lug
Color:
Gray
Centerline of Holes:
5.25"
Overall Length:
7.01"
Thread Pitch:
1/8-27 NPT
Bore 2 Size:
1.75"
Total Piston Area:
4.80 sq. in.
Mount Hole Size:
0.39"
Mounted Height:
2.03"
Pad Area:
6.36 sq. in.
Pad Volume:
2.10 cu. in.
MFG. Part #:
120-6816
GTIN Code:
889545005035
Sold in Quantity:
Each
Info
The Forged Billet Dynalite is widely used in Road Race, Late Model Dirt, and Open Wheel motorsports. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.
Forged Dynalites are the strongest calipers in the class, with weights starting at 2.80 pounds. Without even considering the overall greater strength and reliability of the forging, the reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel. The bottom line is a taller pedal and better stopping power.
- Pistion Count: 4
- Area (in²): 4.80
- Piston Type: Stainless
- Fits .75" - 0.81" wide by 10" - 13.06" diameter rotors
- Pad Area (in²): 6.36
- Pad Volume (in³): 2.1
- Mount Type: Lug
- Mount Side: Universal
- Weight(Lbs): 2.80
Specs
Charts
8351206816 Instructions (PDF)
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
