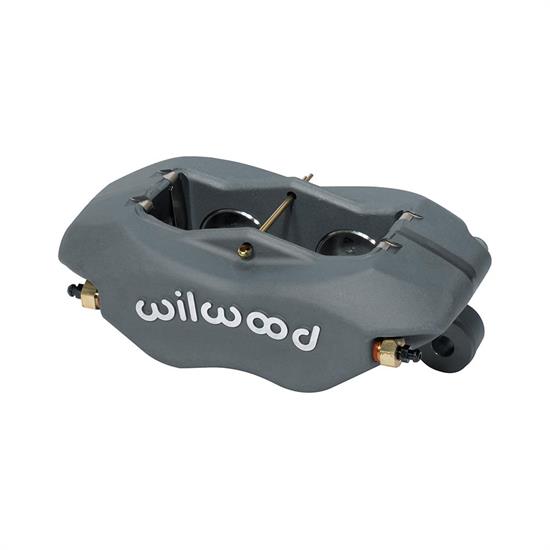

Wilwood 120-6814 Forged Dynalite Caliper, 1.75 Inch Piston / 1.25 Disc
Wilwood 120-6814 Forged Dynalite Caliper, 1.75 Inch Piston / 1.25 Disc
Dirt Late Model, Legends, Midget, Modified, Pavement Late Model, Sprint Car, Forged Aluminum
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 120-6814 Forged Dynalite Caliper, 1.75 Inch Piston / 1.25 Disc
X
Part # 8351206814
$130.50
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Fits .75" - 1.25" wide by 10" - 13.06" diameter rotors
- Caliper has a total of 4 pistons and covers a total of 4.80 in²
- Designed to be the strongest calipers in the class, with weights starting at 2.80 pounds
- Has a forged aluminum construction with a Type III Anodized finish for added corrosion resistance
- The reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel
Details
Caliper Pistons:
Four
Piston Diameter:
1.75"
Rotor Thickness:
1.25"
Material Type:
Forged Aluminum
Finish:
Type III Anodized
Rotor Diameter:
13.06 Inch
Mounting Side:
Universal
Bore Size:
1.75"
Caliper Mounting Type:
Lug
Color:
Gray
Centerline of Holes:
5.25"
Overall Length:
7.01"
Thread Pitch:
1/8-27 NPT
Bore 2 Size:
1.75"
Total Piston Area:
4.80 sq. in.
Mount Hole Size:
0.39"
Mounted Height:
2.03"
Pad Area:
6.36 sq. in.
Pad Volume:
2.10 cu. in.
MFG. Part #:
120-6814
GTIN Code:
889545005011
Sold in Quantity:
Each
Info
The Forged Billet Dynalite is widely used in Road Race, Late Model Dirt, and Open Wheel motorsports. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.
Forged Dynalites are the strongest calipers in the class, with weights starting at 2.80 pounds. Without even considering the overall greater strength and reliability of the forging, the reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel. The bottom line is a taller pedal and better stopping power.
- Pistion Count: 4
- Area (in²): 4.80
- Piston Type: Stainless
- Fits .75" - 1.25" wide by 10" - 13.06" diameter rotors
- Pad Area (in²): 6.36
- Pad Volume (in³): 2.1
- Mount Type: Lug
- Mount Side: Universal
- Weight(Lbs): 2.80
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
