Product Summary

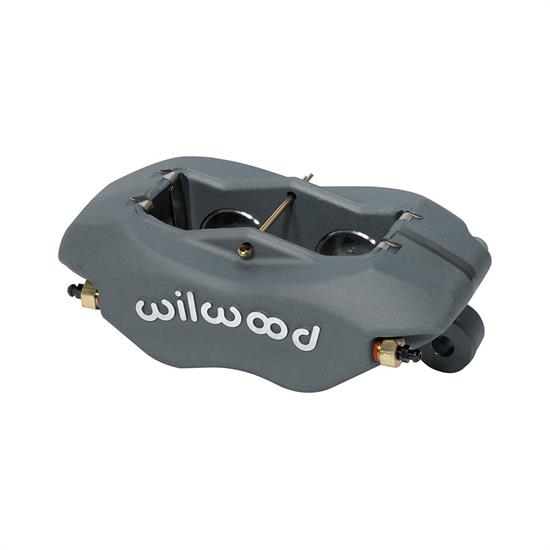

Universal Fit, Four Caliper Pistons, Forged Aluminum

  • New forged design will fit rotors measuring 10" - 13.06" diameter
  • Kit includes 4 stainless steel pistons and a 1/8" NPT inlet
  • Mounting centers are 5-1/4" apart
  • Four corner bleed screws allow one caliper to be mounted in any front, rear, right, or left position
  • High temp seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads

Key Specs

MFG. Part #120-6808
BrandWilwood

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

The Forged Billet Dynalite has wide spread application over many forms over motorsports. It serves as the base model in the majority of Wilwood's Bolt-On Disc Brake Kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.

Get a guaranteed taller pedal and better stopping power with these calipers! New forged design for rotors measuring 10" - 13.06" diameter. Includes 4 stainless steel pistons and a 1/8" NPT inlet. Mounting centers are 5-1/4" apart.

Pads not included.

Catalog Correction:  These calipers will work with 10" - 13.06" O.D. rotors.

Features:
  • Bridge plates extend the service life of the caliper body and dampens vibrations
  • High temp seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads
  • Internal fluid passages eliminate the need for external tubes
  • Four corner bleed screws allow one caliper to be mounted in any front, rear, right, or left position
  • Black anodized finish to resist corrosion
  • Wilwood FDL Data Sheet (PDF)
  • Inlet: 1/8 " NPT
  • Mounting Centers: 5-1/4 "
  • Mount Hole Size: 0.39 "
  • Mount Side: Universal
Features:
  • Bridge plates extend the service life of the caliper body and dampens vibrations
  • High temp seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads
  • Internal fluid passages eliminate the need for external tubes
  • Four corner bleed screws allow one caliper to be mounted in any front, rear, right, or left position
  • Black anodized finish to resist corrosion
  • Wilwood FDL Data Sheet (PDF)
  • Inlet: 1/8 " NPT
  • Mounting Centers: 5-1/4 "
  • Mount Hole Size: 0.39 "
  • Mount Side: Universal

Application

Driving Environment / Application Duty
  • Street Rods                (Heavy Duty)
  • Street Performance    (Heavy Duty)
  • Rally                           (Medium Duty)
  • Road Race                  (Medium Duty)
  • Late Model Dirt           (Heavy Duty)
  • Drag Racing               (Heavy Duty)
  • Northeast Modified     (Medium Duty)
  • Open Wheel               (Medium Duty)
  • Off Road                     (Medium Duty)

Specifications

KEY SPECS
MFG. Part #120-6808
BrandWilwood
GENERAL
Caliper PistonsFour
Piston Diameter1.38"
Rotor Thickness0.38"
Material TypeForged Aluminum
FinishType III Anodized
Rotor Diameter13.06 Inch
Mounting SideUniversal
Bore Size1.38"
Caliper Mounting TypeLug
ColorGray
Centerline of Holes5.25"
Overall Length7.01"
Thread Pitch1/8-27 NPT
Bore 2 Size1.38"
Total Piston Area3.00 sq. in.
Mount Hole Size0.39"
Mounted Height2.03"
Pad Area6.36 sq. in.
Pad Volume2.10 cu. in.
GTIN Code889545004953
Sold in QuantityEach
