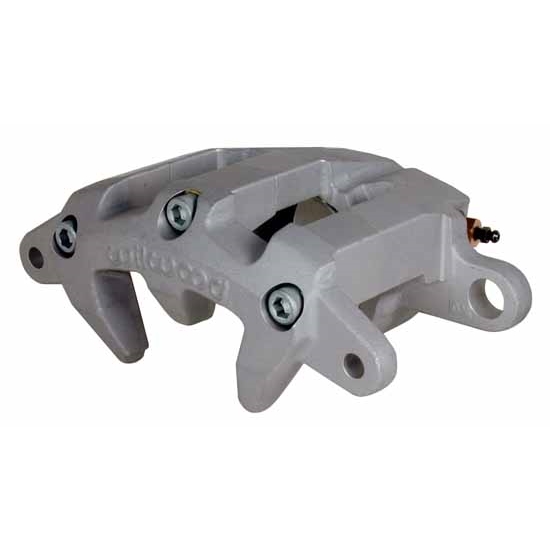

Wilwood 120-5861 D52 Single Piston Floater Caliper, GM III, 2.75/1.00
Wilwood 120-5861 D52 Single Piston Floater Caliper, GM III, 2.75/1.00

Wilwood 120-5861 D52 Single Piston Floater Caliper, GM III, 2.75/1.00

Universal Fit, Single Caliper Pistons, 1.00" Rotor Thickness, Aluminum, Anodized, Clear

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-5861 D52 Single Piston Floater Caliper, GM III, 2.75/1.00
Wilwood 120-5861 D52 Single Piston Floater Caliper, GM III, 2.75/1.00
Zoomed In Image
Part # 8351205861
$138.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Caliper Pistons:
Single
Rotor Thickness:
1.00"
Material Type:
Aluminum
Finish:
Anodized
Bore Size:
2.75"
Color:
Clear
Centerline of Holes:
7.06"
Thread Pitch:
1/8-27 NPT
Rotor Diameter:
11.75 Inch
Caliper Mounting Type:
Floating
Mounting Side:
Universal
Total Piston Area:
5.94 sq. in.
Mount Hole Size:
0.69"
Mounted Height:
0.77"
Pad Area:
10.00 sq. in.
Pad Volume:
3.90 cu. in.
GTIN Code:
889545004243

Info

Wilwood's GMIII caliper represents the latest refinements in caliper design and manufacturing through solid modeling and stress simulation programs. The result is the most rigid, highest torque, lightweight aluminum caliper with weights starting at 3.36 pounds. Requires use of hardened Wilwood slide pins (sold separately), request part no. 230-0619 (slide pin kit) contains 4 slide pins, enough for two calipers The real strength comes from its exclusive triple bridge configuration which provides a tremendous increase in clamping force over other twin bridge calipers. Efficient­ designs further maximize weight savings: material is properly placed to fortify all load bearing points. Each caliper model has its own unique casting: 2.38 diameter piston calipers incorporate a smaller external contour than the larger 2.75 diameter piston calipers. Any material that did not contribute to strength, was eliminated for weight reduction. The GMIII incorporates standard Wilwood features like stainless steel pistons for increased fluid protection and high temperature seals for controlled retraction which provides improved driver feel. The GM III for 1.00 width rotor is machined and fitted with OEM type slide pin vibration dampeners for a direct OEM caliper interchange. These tight grained, high density aircraft alloy aluminum castings are fully machined, assembled and tested in-house by fully trained technicians at Wilwood to assure top quality and peak performance.
Some parts are not legal for use in California or other states with similar laws/regulations
