Part # 8351205344

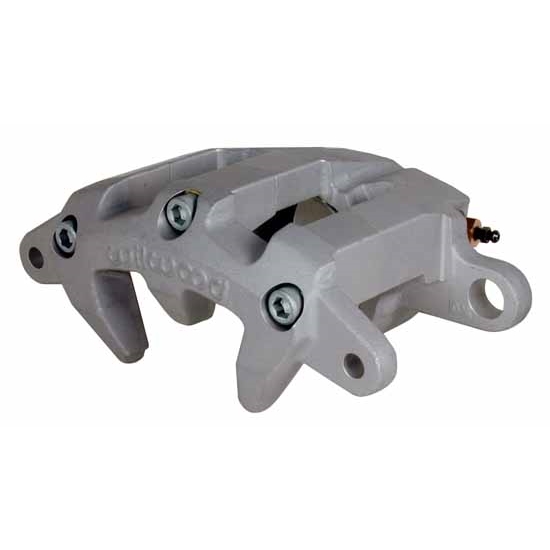

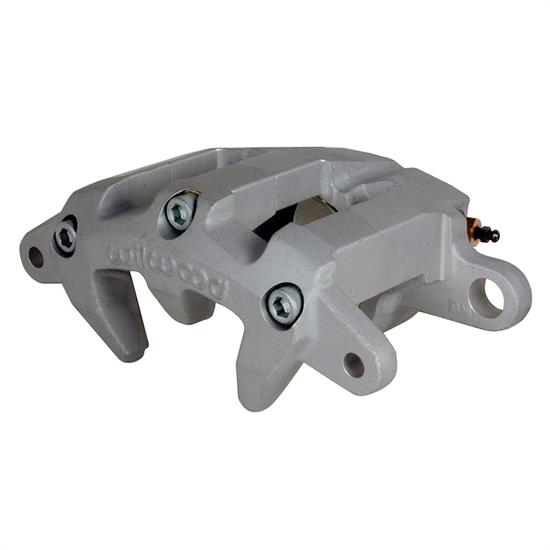

Wilwood 120-5344 D52 Single Piston Floater Caliper, GM III, 2.38/1.25
by
$138.48
each
Discontinued
This item is currently not available
Shop all Brake Calipers
Product Summary
Hobby Stock, Pavement Late Model, One Caliper Pistons
See more details
Key Specs
MFG. Part # | 120-5344 |
Caliper Pistons | One |
Piston Diameter | 2.75" |
Rotor Thickness | 1.25" |
Material Type | Aluminum |
See more specs
Need To Know
Free Shipping on Orders Over $149
Quick and Easy Returns
Details
Details
Wilwoods GM III caliper represents the latest refinements in caliper design and manufacturing through the use of solid modeling and stress simulation programs. The result is the most rigid, highest torque, lightweight aluminum caliper in its class.
These tight grained, high density aircraft alloy aluminum castings are fully machined, assembled and tested in-house by fully trained technicians at Wilwood to assure top quality and peak performance.
- Exclusive triple bridge configuration provides increase in clamping force over standard twin bridge calipers
- Material is properly placed to fortify all load bearing points
- 2.38" diameter piston calipers have a smaller external contour than the larger 2.75" diameter piston calipers
- Stainless steel pistons for increased fluid protection
- High temperature seals for controlled retraction which provides improved driver feel
1/8 Inch NPT Inlet
Item Details
2.38" Piston/1.25 RotorCharts
Wilwood Specs Sheet (JPG)
Wilwood Data Sheet (PDF)
Guides & Documents
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | 120-5344 |
Brand | Wilwood |
Caliper Pistons | One |
Piston Diameter | 2.75" |
Rotor Thickness | 1.25" |
Material Type | Aluminum |
GENERAL | |
Finish | Clear Anodized |
Rotor Diameter | 11.75 Inch |
Mounting Side | Universal |
Bore Size | 2.38" |
Caliper Mounting Type | Floating |
Color | Natural |
Centerline of Holes | 7.06" |
Overall Length | 8.18" |
Thread Pitch | 1/8-27 NPT |
Total Piston Area | 4.45 sq. in. |
Mount Hole Size | 0.69" |
Mounted Height | 0.77" |
Pad Area | 10.00 sq. in. |
Pad Volume | 3.90 cu. in. |
GTIN Code | 889545004090 |
Sold in Quantity | Each |
