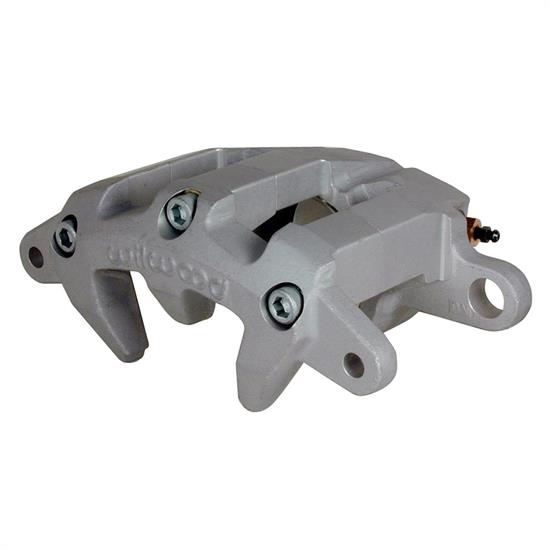

Wilwood 120-5289 D52 Single Piston Floater Caliper, GM III, 2.75/1.25
Wilwood 120-5289 D52 Single Piston Floater Caliper, GM III, 2.75/1.25

Wilwood 120-5289 D52 Single Piston Floater Caliper, GM III, 2.75/1.25

0 Reviews | 1 Answered Question
Discontinued
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-5289 D52 Single Piston Floater Caliper, GM III, 2.75/1.25
Wilwood 120-5289 D52 Single Piston Floater Caliper, GM III, 2.75/1.25
Wilwood 120-5289 D52 Single Piston Floater Caliper, GM III, 2.75/1.25
Wilwood 120-5289 D52 Single Piston Floater Caliper, GM III, 2.75/1.25
X
Wilwood 120-5289 D52 Single Piston Floater Caliper, GM III, 2.75/1.25
Wilwood 120-5289 D52 Single Piston Floater Caliper, GM III, 2.75/1.25
Zoomed In Image
Part # 8351205289
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Caliper Pistons:
Single
Piston Diameter:
2.75"
Rotor Thickness:
1.25"
Material Type:
Aluminum
Finish:
Clear Anodized
Rotor Diameter:
11.75 Inch
Mounting Side:
Universal
Bore Size:
2.75"
Caliper Mounting Type:
Floating
Color:
Natural
Centerline of Holes:
7.06"
Overall Length:
8.18"
Thread Pitch:
1/8-27 NPT
Total Piston Area:
5.94 sq. in.
Mount Hole Size:
0.69"
Mounted Height:
0.77"
Pad Area:
10.00 sq. in.
Pad Volume:
3.90 cu. in.
MFG. Part #:
120-5289
GTIN Code:
889545004069
Notes:
This caliper will not accept a 90 degree fitting for the inlet.
Sold in Quantity:
Each

Info

Wilwoods GM III caliper represents the latest refinements in caliper design and manufacturing through the use of solid modeling and stress simulation programs. The result is the most rigid, highest torque, lightweight aluminum caliper in its class. These tight grained, high density aircraft alloy aluminum castings are fully machined, assembled and tested in-house by fully trained technicians at Wilwood to assure top quality and peak performance.

  • 1/8 Inch NPT Inlet
  • Exclusive triple bridge configuration provides increase in clamping force over standard twin bridge calipers
  • Material is properly placed to fortify all load bearing points
  • 2.38" diameter piston calipers have a smaller external contour than the larger 2.75" diameter piston calipers
  • Stainless steel pistons for increased fluid protection
  • High temperature seals for controlled retraction which provides improved driver feel

Wilwood Specs Sheet (Link)

Wilwood Data Sheet (PDF)

Item Details

2.75" Piston/1.25 Rotor

Important Messages:

  • This product is discontinued.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
