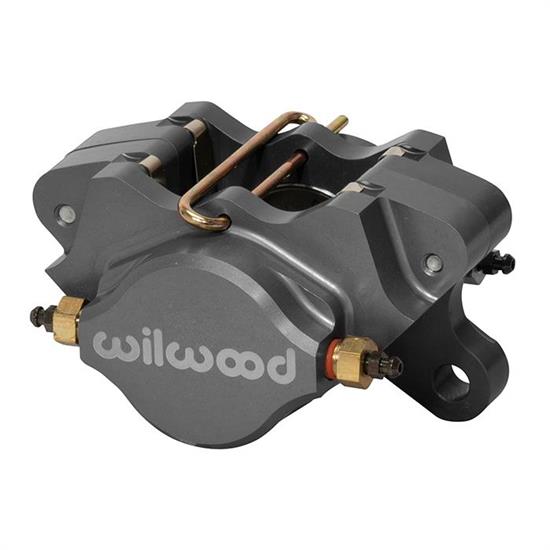

Wilwood 120-4062 Billet Dynalite Single Caliper,3.25"Mnt,1.75/.38
Wilwood 120-4062 Billet Dynalite Single Caliper,3.25"Mnt,1.75/.38

Wilwood 120-4062 Billet Dynalite Single Caliper,3.25"Mnt,1.75/.38

Micro Sprint, Midget, Mini Sprint, Sprint Car, Two Caliper Pistons, 1.75" Piston Diameter, Ano

3 Reviews | 1 Answered Question
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-4062 Billet Dynalite Single Caliper,3.25"Mnt,1.75/.38
Wilwood 120-4062 Billet Dynalite Single Caliper,3.25"Mnt,1.75/.38
Wilwood 120-4062 Billet Dynalite Single Caliper,3.25"Mnt,1.75/.38
Wilwood 120-4062 Billet Dynalite Single Caliper,3.25"Mnt,1.75/.38
X
Wilwood 120-4062 Billet Dynalite Single Caliper,3.25"Mnt,1.75/.38
Wilwood 120-4062 Billet Dynalite Single Caliper,3.25"Mnt,1.75/.38
Zoomed In Image
Part # 8351204062
$120.35
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
  • Designed to work with .38" rotors
  • Has 3-1/4" mount centers and uses "Single Quick-Change" style pads
  • Features a lightweight, compact design with two stainless steel 1-3/4" pistons
  • Made from lightweight, yet strong aluminum with an anodized finish for added corrosion resistance
  • Ideal for compact high performance braking as required in Open Wheel, Drag, Modified, Kart, Motorcycle and Off Road applications

Details

Caliper Pistons:
Two
Piston Diameter:
1.75"
Rotor Thickness:
0.38"
Material Type:
Aluminum
Finish:
Anodized
Rotor Diameter:
13 Inch
Mounting Side:
Universal
Bore Size:
1.75"
Caliper Mounting Type:
Lug
Color:
Ano
Centerline of Holes:
3.25"
Overall Length:
4.78"
Thread Pitch:
1/8-27 NPT
Total Piston Area:
2.40 sq. in.
Mount Hole Size:
0.39"
Mounted Height:
1.92"
Pad Area:
3.00 sq. in.
Pad Volume:
1.10 cu. in.
MFG. Part #:
120-4062
GTIN Code:
889545003925
Sold in Quantity:
Each

Info

Wilwood’s Billet Dynalite Single utilizes close tolerance design and manufacturing techniques which results in the most rigid, lightweight and attractive caliper in the evolution of the Dynalite Single Series. Starting at 1.58 pounds, the Billet Dynalite Single is perfect for compact high performance braking as required in Open Wheel, Drag, Modified, Kart, Motorcycle and Off Road applications.

  • Lightweight, compact design with two stainless steel 1-3/4" pistons
  • Use with .38" rotors
  • Has 3-1/4" mount centers
  • Uses "Single Quick-Change" style pads
Wilwood Dynalite Dimensions (Link)
