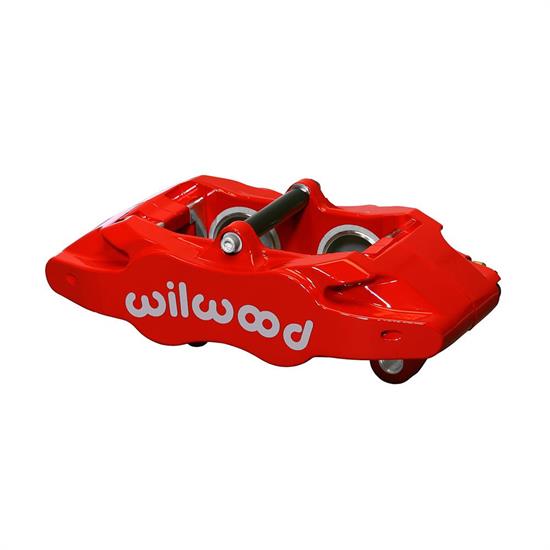

Wilwood 120-13915-RD SLC56 Red Caliper for 1.25 Inch Rotor
Four Caliper Pistons, 1.25" Rotor Thickness, Aluminum, Powder Coated, Universal Mounting Side
- This item ships directly from the manufacturer. It may take an additional 3 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Wilwood has engineered this SLC56 front caliper to be high performance and custom replacement for Corvettes and hot rods using Corvette suspension. These calipers add high-tech styling and provide the positive response & balance pad loading provided by a fixed mount, four piston caliper. These front calipers are direct bolt-on replacements for the OE calipers on all models of 1997-2004 C5's and all base model 2005-2013 C6's using 12.8" diameter front rotors. You won't have to worry about fitment as the calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.
The SLC56 front caliper is based on the top performing Superlite caliper series. These front calipers feature an ultra-high strength forged aluminum body, stainless steel pistons, internal bore seals, internal piston damping springs, stainless steel bridge wear plates, and a single screw bleed system. These front calipers accept the same type 7416 16mm thick brake pads as used in all Superlite series calipers.
The OE piston volume is matched with these SLC56 front calipers. This makes the calipers fully compatible with the output of the OE master cyluinder and ABS system. In addition, front to rear brake bias and pedal travel remain as stock. If you're doing a custom build, the caliper volume is also easily matched to other styles of manual or power brake pedals with proper master cylinder sizing.
Internally, all surfaces and passages are anodized to provide corrosion resistance with a durable wear surface for stainless pistons inside. Externally, these front calipers are finished with a high gloss protective powder coating process that is both brake fluid and heat resistant for extra corrosion resistance. These calipers will look as great as they will perform for many miles to come.
- Piston Count: 4
- Piston Area: 4.12"
- Piston Type: Stainless
- Mount Type: Lug
- Material: Aluminum
- Inlet Thread Size: M10 x 1.00
- Mount Side: Universal
- Mount Center: 5.04"
- Weight: 6.3lbs
- Finish: Red Powder Coat
Mount Dimensions (GIF)
- Rotor Width: 1.25"
- Max. Rotor Width: 1.25"
- Min. Rotor Width: 1.19"
- Max. Rotor Diameter: 12.8"
- Min. Rotor Diameter: 12.8"
- Piston 1 Bore: 1.62"
- Piston 2 Bore: 1.62"
- Total Piston Area: 4.12"
Brake Pad Specifications-
- Brake Pad Type 1: 7416
- Total Pad Area: 8.2"
- Total Pad Volume: 3.8"
Wilwood fitment note: These SLC56 calipers have been checked to clear Z06 model wheels. All other OE production and aftermarket wheels should be checked for proper clearance prior to installation. Wheel spacers may be required on some applications. Please refer to the wheel clearance diagram for additional information on backdrop spacing and radial clearance requirements.
- Chevrolet Corvette 2009-2013 Base
- Chevrolet Corvette 1997-2004 C-5 & Z06
- Chevrolet Corvette 2005-2008 C-6 - Base
