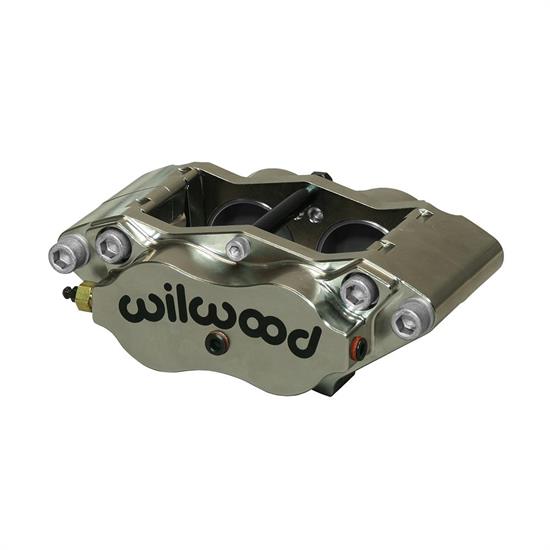

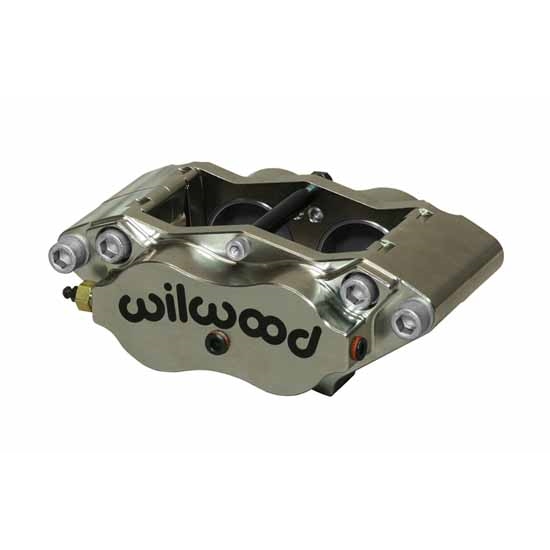

Wilwood 120-13406-N BN Dynalite Radial Mount Caliper, Nickel, .81 Disc
Wilwood 120-13406-N BN Dynalite Radial Mount Caliper, Nickel, .81 Disc

Wilwood 120-13406-N BN Dynalite Radial Mount Caliper, Nickel, .81 Disc

Universal Fit, Four Caliper Pistons, 0.81" Rotor Thickness, Aluminum, Nickel, 1.75" Bore Size

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-13406-N BN Dynalite Radial Mount Caliper, Nickel, .81 Disc
Wilwood 120-13406-N BN Dynalite Radial Mount Caliper, Nickel, .81 Disc
Zoomed In Image
Part # 83512013406N
Save 7%
$212.99
$229.98
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Caliper Pistons:
Four
Rotor Thickness:
0.81"
Material Type:
Aluminum
Finish:
Nickel
Bore Size:
1.75"
Centerline of Holes:
4.75"
Thread Pitch:
1/8-27 NPT
Rotor Diameter:
12.72 Inch
Caliper Mounting Type:
Radial
Mounting Side:
Universal
Bore 2 Size:
1.75"
Total Piston Area:
4.80 sq. in.
Mount Hole Size:
0.39"
Mounted Height:
1.24"
Pad Area:
6.36 sq. in.
Pad Volume:
3.00 cu. in.
GTIN Code:
889545003642

Info

Wilwood's newly redesigned Billet Narrow Mount Dynalite (NDLR) Radial Mount caliper series continues to grow in popularity in Sprint & Midget inboard applications. Starting at 2.70 pounds, this compact and lightweight design is now available in a radial mount configuration. Engineered specifically for .38 and .810 width rotors, with a single split bridge area for strength. This spacer-less design maximizes rigidity and strength. Quick-Silver Nickel plating further enhances the durability of the caliper. Billet NDLR calipers can be directly mounted over studs, or used with a radial mount bracket kit in place of a tab mount caliper. The Billet NDLR caliper is a compact, lightweight, and rugged caliper that provides strong clamping force from four 1.75" stainless cup pistons. The bodies are fully CNC machined from billet with internal fluid ports that eliminate external fluid tubes. Each caliper is equipped with two corner bleeds and outboard inlets in the correct location for a standard Inboard mount. The bridges are equipped with stainless steel anti-rattle wear plates. These plates reduce bridge wear and provide smooth, rattle free operation of the pads. A center bridge bolt adds overall caliper strength and positive retention of the top loaded pads. All Billet NDLR calipers are designed for long service using the 0.63 (16,0 mm) thick 7216 style brake pads. These pads are available in eight different PolyMatrix compounds to provide the correct brake torque and heat range for any high performance or competition application. Radial mount bracket kits are used to install a radial mount caliper in place of a tab mount caliper. Brackets are available for both Sprint and Midget Inboard applications for various rotor diameters.
Some parts are not legal for use in California or other states with similar laws/regulations
