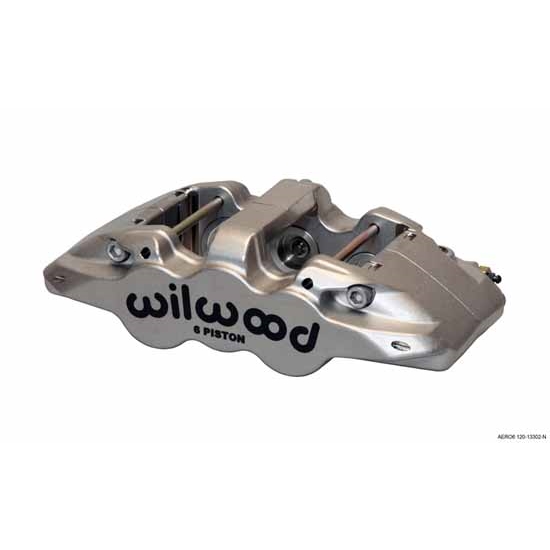

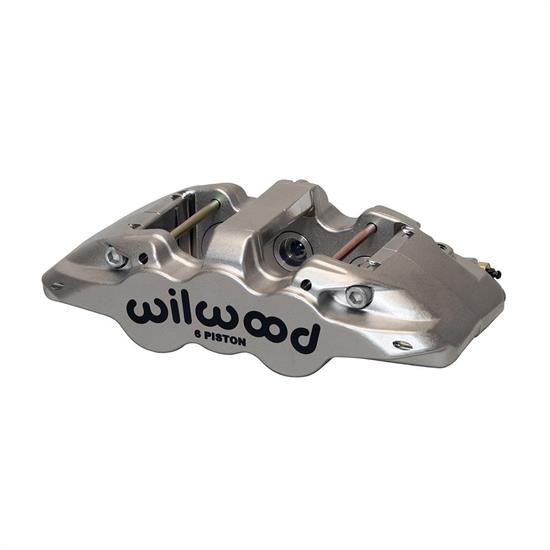

Wilwood 120-13302-N AERO6-ST-LH Caliper, Nickel, .80 Inch Thick Pad
Wilwood 120-13302-N AERO6-ST-LH Caliper, Nickel, .80 Inch Thick Pad

Wilwood 120-13302-N AERO6-ST-LH Caliper, Nickel, .80 Inch Thick Pad

Universal Fit, Six Caliper Pistons, 1.25" Rotor Thickness, Aluminum, Nickel, 1.75" Bore Size

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-13302-N AERO6-ST-LH Caliper, Nickel, .80 Inch Thick Pad
Wilwood 120-13302-N AERO6-ST-LH Caliper, Nickel, .80 Inch Thick Pad
Zoomed In Image
We estimate this item will ship on or before June 26th.
Part # 83512013302N
Save 7%
$791.99
$854.94
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Caliper Pistons:
Six
Rotor Thickness:
1.25"
Material Type:
Aluminum
Finish:
Nickel
Bore Size:
1.75"
Centerline of Holes:
7.09"
Thread Pitch:
1/8-27 NPT
Rotor Diameter:
15 Inch
Caliper Mounting Type:
Radial
Mounting Side:
Left Hand
Bore 2 Size:
1.38"
Bore 3 Size:
1.38"
Total Piston Area:
5.40 sq. in.
Mount Hole Size:
0.45"
Mounted Height:
2.09"
Pad Area:
0.00 sq. in.
Pad Volume:
0.00 cu. in.
GTIN Code:
889545003512

Info

The new Aero6-ST Quick-Silver forged six piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.19" to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new Aero4 is the latest innovation to the W4A / W6A series of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly. Equipped with Thermlock piston technology and Wilwood's Quick-Silver Nickel coating. QS-ST calipers utilizing the new .80 thick 6620 pad plate, give extra pad life for high heat endurance racing. The body of Aero series is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.
Some parts are not legal for use in California or other states with similar laws/regulations
