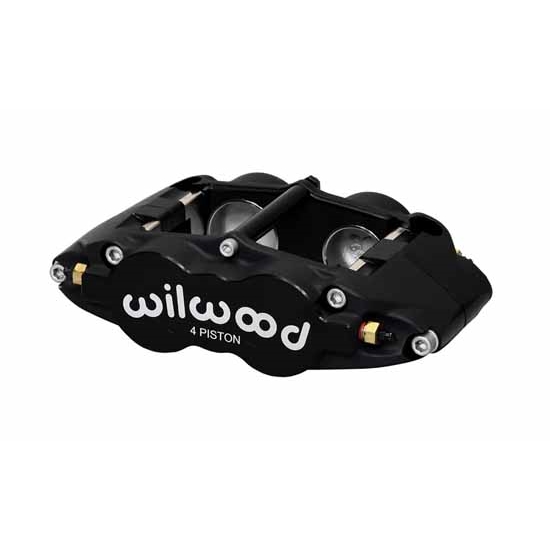

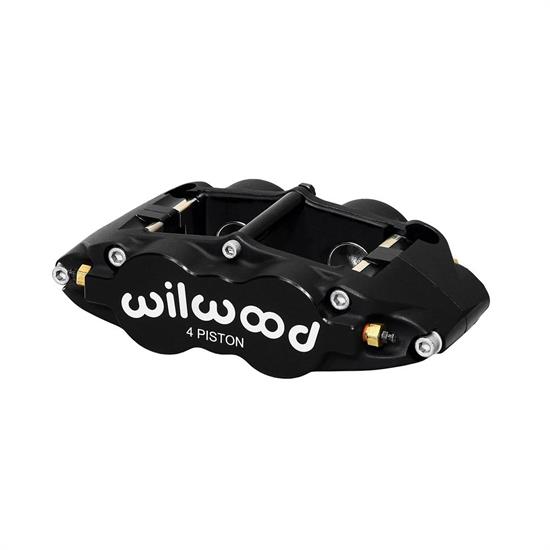

Wilwood 120-13231 Forged Superlite 4 Radial Mount Caliper
Wilwood 120-13231 Forged Superlite 4 Radial Mount Caliper

Wilwood 120-13231 Forged Superlite 4 Radial Mount Caliper

Universal Fit, Four Caliper Pistons, 1.25" Rotor Thickness, Aluminum, Anodized, 1.62" Bore Size

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-13231 Forged Superlite 4 Radial Mount Caliper
Wilwood 120-13231 Forged Superlite 4 Radial Mount Caliper
Zoomed In Image
Part # 83512013231
Save 7%
$229.99
$248.34
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Caliper Pistons:
Four
Rotor Thickness:
1.25"
Material Type:
Aluminum
Finish:
Anodized
Bore Size:
1.62"
Color:
Black
Centerline of Holes:
5.98"
Thread Pitch:
1/8-27 NPT
Rotor Diameter:
14 Inch
Caliper Mounting Type:
Radial
Mounting Side:
Universal
Bore 2 Size:
1.62"
Total Piston Area:
4.12 sq. in.
Mount Hole Size:
0.39"
Mounted Height:
1.62"
Pad Area:
8.20 sq. in.
Pad Volume:
4.90 cu. in.
GTIN Code:
889545003048

Info

The Superlite 4R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL4R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow symmetrical piston bore models to be mounted either right or left in a leading or trailing position. Differential bore models still require left hand and right hand orientation, but no leading or trailing configuration is necessary. The most noteworthy feature of all the FSL4R caliper models is the exceptional strength and reduced weight of the forging. With assembled weights just at 4.4 pounds, the caliper body design in itself is a product of computer generated solid modeling and stress analysis technology. Each caliper features closed end bridges with a radial transition down to the main body and piston bore housings. The elimination of machined steps and sharp shoulders in this critical area provides a measurable increase in overall body strength and resistance to deflection under load. Every FSL4R body is stress-flow forged from a premium grade aluminum alloy billet.
Some parts are not legal for use in California or other states with similar laws/regulations
