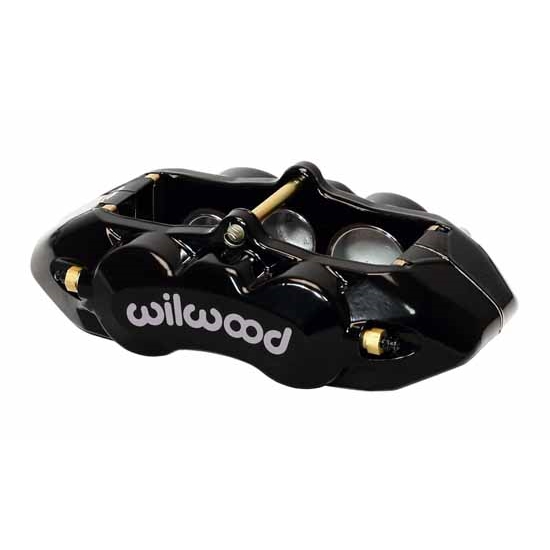

Wilwood 120-11712-BK D8-6 Front LH Caliper, 1.88/1.38/1.25 Piston
Wilwood 120-11712-BK D8-6 Front LH Caliper, 1.88/1.38/1.25 Piston

Wilwood 120-11712-BK D8-6 Front LH Caliper, 1.88/1.38/1.25 Piston

65-82 Chevy Corvette, Six Caliper Pistons, 1.25" Rotor Thickness, Aluminum, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-11712-BK D8-6 Front LH Caliper, 1.88/1.38/1.25 Piston
Wilwood 120-11712-BK D8-6 Front LH Caliper, 1.88/1.38/1.25 Piston
Zoomed In Image
We estimate this item will ship on or before December 19th.
Part # 83512011712BK
Save 7%
Add to Cart
Call to Order
Add to Buildlist

Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.


Caliper Pistons:
Rotor Thickness:
Material Type:
Powder Coated
Bore Size:
Centerline of Holes:
Thread Pitch:
1/8-27 NPT
Rotor Diameter:
11.75 Inch
Caliper Mounting Type:
Mounting Side:
Left Hand
Bore 2 Size:
Bore 3 Size:
Total Piston Area:
5.51 sq. in.
Mount Hole Size:
Mounted Height:
Pad Area:
0.00 sq. in.
Pad Volume:
3.90 cu. in.
GTIN Code:


D8-6 front calipers are a direct bolt-on 6 piston replacement for the OE factory 4 piston front calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high temperature seals put an end to the rust, bore pitting, and seal failures that plague the original cast iron caliper design. D8-6 calipers mount in the stock location over stock rotors and use the original type D8 brake pads. These calipers fit inside 1967 and later production steel rally wheels and most of the later model alloy wheels. Original steel JK code wheels from 1965-66, and some aftermarket alloy replica wheels, will requires a 3/16 or thicker wheel spacer for clearance. D8-6 calipers use the same overall piston volume as the original calipers, but with the added benefit of differential bores. Differential bores counteract pad taper in high temperature racing and the 6 piston design offer greater pad support. Other than a new flexline with an 1/8 -27 NPT end for the new aluminum caliper, no other changes such as master cylinder output or front to rear bias adjustment are necessary. D8-6 calipers are the product of Wilwood's in-house FEA design and 3-D modeling technology. With its unyielding strength and superior piston design, the D8-4 generates positive pedal response and high clamping efficiency with a substantial weight savings.
Some parts are not legal for use in California or other states with similar laws/regulations
