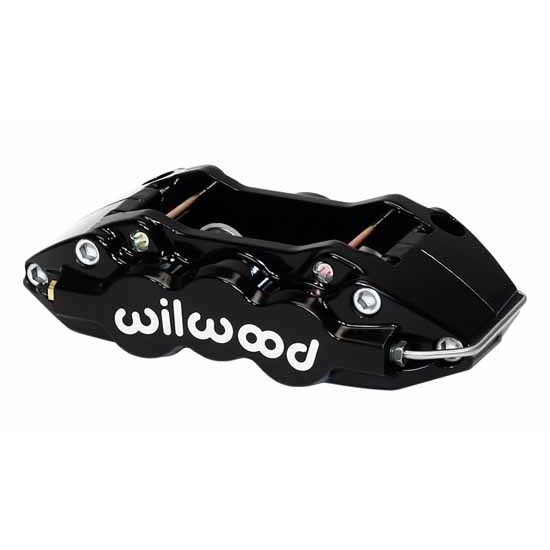

Wilwood 120-11671-RS W4A ST Radial Rear Mount RH Caliper
Wilwood 120-11671-RS W4A ST Radial Rear Mount RH Caliper

Wilwood 120-11671-RS W4A ST Radial Rear Mount RH Caliper

Universal Fit, Four Caliper Pistons, 1.25" Rotor Thickness, Aluminum, Powder Coated, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-11671-RS W4A ST Radial Rear Mount RH Caliper
Wilwood 120-11671-RS W4A ST Radial Rear Mount RH Caliper
Zoomed In Image
We estimate this item will ship on or before October 24th.
Part # 83512011671RS
Save 7%
$591.99
$638.93
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Caliper Pistons:
Four
Rotor Thickness:
1.25"
Material Type:
Aluminum
Finish:
Powder Coated
Bore Size:
1.75"
Color:
Black
Centerline of Holes:
7.09"
Thread Pitch:
1/8-27 NPT
Rotor Diameter:
14.25 Inch
Caliper Mounting Type:
Radial
Mounting Side:
Right Hand
Bore 2 Size:
1.38"
Total Piston Area:
3.90 sq. in.
Mount Hole Size:
0.45"
Mounted Height:
2.09"
Pad Area:
11.00 sq. in.
Pad Volume:
5.20 cu. in.
GTIN Code:
889545002065

Info

The W4A/ST forged four piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, two options for piston volume, and a rotor diameter ranging from 12.19" to 14.25" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The W4A/ST body is the product of FEA computer design and stress flow forging technology. FEA technology allows the designer to test the prototype in a computer environment to determine the optimal structural design within the dimensional parameters of the component. Stress flow forging produces a part with the internal grain structure of the metal aligned in the direction of the flow of the body contour. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load. This caliper generates big brake clamping force with six differential bore stainless steel pistons. Stainless steel is used for its high resistance to corrosion and low thermal conductivity that reduces the heat transfer from the pads. The differential bore pattern balances pad loading to help maintain even pad wear. High temperature bore seals provide long service life and maintain their resilience to provide positive piston retraction on release. Two options for overall piston volume make it simple to match the calipers with master cylinder output and rear caliper size for correct bias proportioning. The performance of the W4A/ST is enhanced with SRS bridge plates, snap-ring locked pad retainer pins, recessed two-piece bleed screw assemblies and dampen mounted fluid transfer tubes. SRS bridge plates eliminate all bridge wear caused by pad gouging. The spring-loaded action of the plates also eliminates pad rattle. Snap ring clips lock the pad pins in place to provide positive retention and allow easy service without caliper removal. The bleed screws are recess mounted for protection against impact and debris. The fluid tubes are dampen mounted to protect them from fatigue or damage from vibration or debris. Calipers are anodized in high luster black to protect from corrosion and maintain their high-tech appearance. The W4A/ST is also available with a gloss red finish or other custom Wilwood color by order. Radial mount adapter brackets are used in Wilwood brake kits to provide a secure and precise method of attaching the W4A/ST caliper to the factory mount bosses on the original spindle.
Some parts are not legal for use in California or other states with similar laws/regulations
