#83512010938

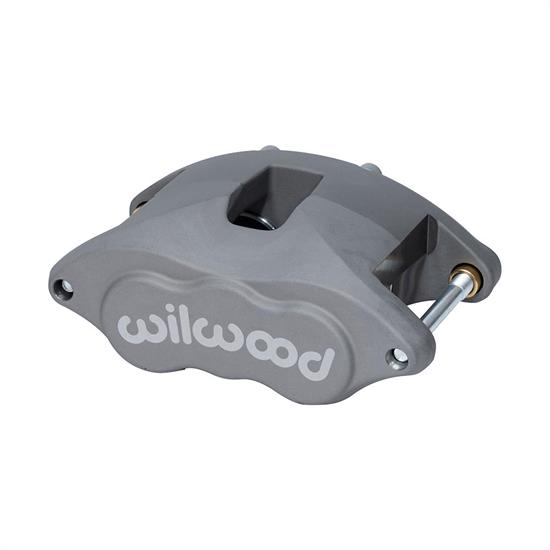

Wilwood 120-10938 D52 Dual Piston Floater Caliper, 1.25 Pist/1.28 Disc
$195.38
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Two Caliper Pistons, 1.25" Bore Size
See more details
Key Specs
MFG. Part # | 120-10938 |
Brand | Wilwood |
Caliper Pistons | Two |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 120-10938 Details
Wilwood 120-10938 Details
The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00 piston provide 6.28 cubic inches of piston area per caliper, to maintain the original front to rear brake bias and use of the OE master cylinder. D52 Calipers come hardened slide pins.
Wilwood 120-10938 Specifications
Wilwood 120-10938 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 120-10938 |
Brand | Wilwood |
Caliper Pistons | Two |
GENERAL | |
Caliper Mounting Type | Floating |
Rotor Diameter | 12.19 Inch |
Mounting Side | Universal |
Bore Size | 1.25" |
Color | Gray |
Centerline of Holes | 7.06" |
Thread Pitch | 7/16-20 |
Rotor Thickness | 1.28" |
Finish | Type III Anodized |
Material Type | Aluminum |
Bore 2 Size | 1.25" |
Total Piston Area | 2.46 sq. in. |
Mount Hole Size | 0.69" |
Mounted Height | 0.77" |
Pad Area | 10.00 sq. in. |
Pad Volume | 3.90 cu. in. |
GTIN Code | 889545001099 |
