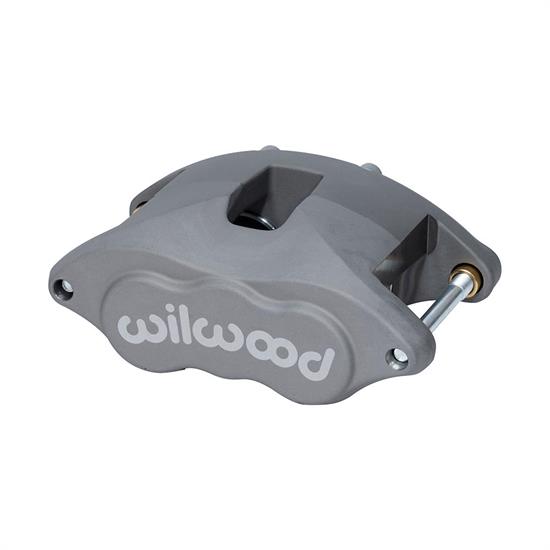

Wilwood 120-10936 D52 Dual Piston Floater Caliper, 2 Piston/1.28 Disc
Wilwood 120-10936 D52 Dual Piston Floater Caliper, 2 Piston/1.28 Disc

Wilwood 120-10936 D52 Dual Piston Floater Caliper, 2 Piston/1.28 Disc

Universal Fit, Two Caliper Pistons, 1.28" Rotor Thickness, Aluminum, Type III Anodized, Gray

0 Reviews | 1 Answered Question
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-10936 D52 Dual Piston Floater Caliper, 2 Piston/1.28 Disc
Wilwood 120-10936 D52 Dual Piston Floater Caliper, 2 Piston/1.28 Disc
Wilwood 120-10936 D52 Dual Piston Floater Caliper, 2 Piston/1.28 Disc
Wilwood 120-10936 D52 Dual Piston Floater Caliper, 2 Piston/1.28 Disc
X
Wilwood 120-10936 D52 Dual Piston Floater Caliper, 2 Piston/1.28 Disc
Wilwood 120-10936 D52 Dual Piston Floater Caliper, 2 Piston/1.28 Disc
Zoomed In Image
We estimate this item will ship on or before October 25th.
Part # 83512010936
Save 5%
$169.15
$178.19
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Caliper Pistons:
Two
Rotor Thickness:
1.28"
Material Type:
Aluminum
Finish:
Type III Anodized
Rotor Diameter:
12.19 Inch
Mounting Side:
Universal
Bore Size:
2.00"
Caliper Mounting Type:
Floating
Color:
Gray
Centerline of Holes:
7.06"
Thread Pitch:
7/16-20
Bore 2 Size:
2.00"
Total Piston Area:
6.28 sq. in.
Mount Hole Size:
0.69"
Mounted Height:
0.77"
Pad Area:
10.00 sq. in.
Pad Volume:
3.90 cu. in.
MFG. Part #:
120-10936
GTIN Code:
889545001037

Info

The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00 piston provide 6.28 cubic inches of piston area per caliper, to maintain the original front to rear brake bias and use of the OE master cylinder. D52 Calipers come hardened slide pins.
Some parts are not legal for use in California or other states with similar laws/regulations
