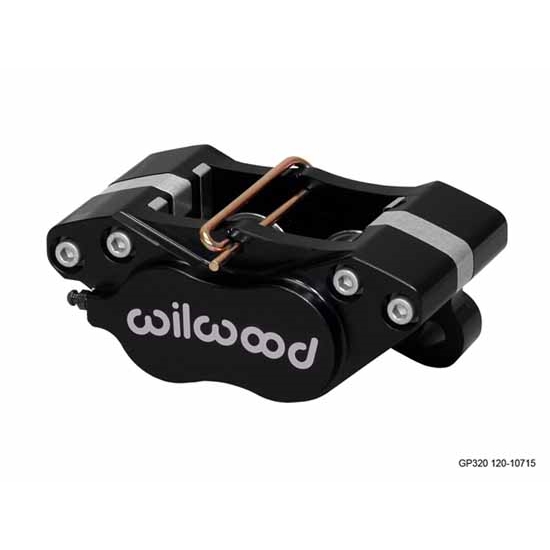

Wilwood 120-10714 GP320 RH Caliper, 1.25 Inch Pistons / .81 Inch Disc
Wilwood 120-10714 GP320 RH Caliper, 1.25 Inch Pistons / .81 Inch Disc

Wilwood 120-10714 GP320 RH Caliper, 1.25 Inch Pistons / .81 Inch Disc

Universal Fit, Four Caliper Pistons, 0.81" Rotor Thickness, Aluminum, Anodized, 1.25" Bore Size

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-10714 GP320 RH Caliper, 1.25 Inch Pistons / .81 Inch Disc
Wilwood 120-10714 GP320 RH Caliper, 1.25 Inch Pistons / .81 Inch Disc
Zoomed In Image
Part # 83512010714
Save 7%
$164.99
$178.19
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Caliper Pistons:
Four
Rotor Thickness:
0.81"
Material Type:
Aluminum
Finish:
Anodized
Bore Size:
1.25"
Color:
Black
Centerline of Holes:
3.50"
Thread Pitch:
1/8-27 NPT
Rotor Diameter:
11.50 Inch
Caliper Mounting Type:
Lug
Mounting Side:
Right Hand
Bore 2 Size:
1.25"
Total Piston Area:
2.46 sq. in.
Mount Hole Size:
0.39"
Mounted Height:
1.63"
Pad Area:
3.65 sq. in.
Pad Volume:
1.03 cu. in.
GTIN Code:
889545000986

Info

The GP 320 billet four piston caliper is a compact, high efficiency performer. Weighing just 1.70 pounds, it was purpose built as an upgrade with increased pad size over two piston calipers on lightweight open wheeled racecars. The GP 320 is also well suited to other performance and racing applications including, but not limited to karts, motorcycles, mini-sprints, and formula sports racers. The GP 320 bridge configuration will accommodate rotors between .75" and .81" thick, with overall diameters between 9.00" and 11.50". Caliper is full CNC detail machined from premium alloy billet. FEA structural analysis technology was employed to develop a design that minimizes weight and maximizes rigidity against deflection. Full width bridges are reinforced with four, high strength steel cross bridge bolts. The cross bridge bolts are coated for corrosion resistance and provide added resistance to deflection and body separation under high loads. Internal fluid ports with a single outboard bleeder provide quick and effective evacuation of gasses and spent fluid. Clamping force is generated by four, 1.25" diameter, stainless steel pistons. The clamping force is spread evenly over the length of the pad to minimize backing plate deflection and promote balanced pad wear. The overall piston bore area provides an increase in clamping force over similar range two piston calipers. Stainless steel is used to resist corrosion and retard the heat transfer from the brake pad to the caliper body, seals, and fluid. The GP 320 uses Wilwood type 6211 brake pads. The pads measure .44" (11,2mm) thick with an overall length of 2.74" ( 69,6mm). This represents nearly a 50% increase in pad area over some of the popular two piston calipers used on similar applications. The 6211 pad is available in PolyMatrix "H" compound which provides predictable engagement, high friction, long wear, and extreme high temperature fade resistance in the harshest conditions. Other Wilwood performance enhancements include high temperature square faced bore seals that provide a wide sealing area with positive piston retraction on release. Quick-Clip retention pins provide easy access for pad service without caliper removal. The calipers are finished in signature Wilwood high luster black anodizing for protection against corrosion and the elements.
Some parts are not legal for use in California or other states with similar laws/regulations
