#80080541E

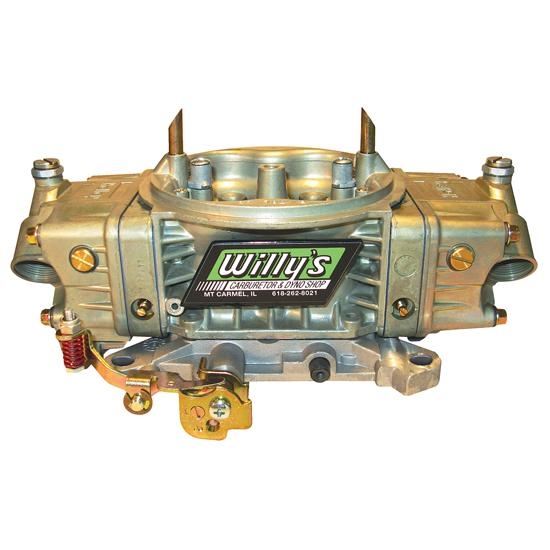

Willys Carbs WCD80541-E85 GM 602 Crate Motor 4 Barrel Carb, E85
by
Willys Carbs1 Review
|
1 Question
- Specially designed for the GM 602 crate motor
- It is based on a 650 body and flows between 800-850 CFM
- Features the same baseplate as a 750 but has 1/8” smaller venturis
See More
$1,099.99
each
In Stock
$1,139.99
Save $40.00
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
602, 4-Barrel Carburetor Barrels, E85 Fuel Type
- Specially designed for the GM 602 crate motor
- It is based on a 650 body and flows between 800-850 CFM
- Features the same baseplate as a 750 but has 1/8” smaller venturis
- Has a choke horn/tower removed for increased flow
- Made from lightweight aluminum with a zinc finish for added protection
See more details
Key Specs
Carburetor Barrels | 4-Barrel |
Fuel Type | E85 |
Choke Type | No Choke |
CFM Range | 800-899 CFM |
CFM | 800 CFM |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWillys Carbs WCD80541-E85 Details
Willys Carbs WCD80541-E85 Details
If you are running the GM 602 crate motor, you need one of these Willy's four barrel carburetors. They are specifically built and dyno tuned to give you maximum power from your crate engine.
- Standard metering blocks
- Based on a 650 body, flows between 800-850 CFM
- Straight leg boosters
- Same baseplate as a 750 but has 1/8” smaller venturies
- Choke horn/tower removed for increased flow
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Willys Carbs WCD80541-E85 Specifications
Willys Carbs WCD80541-E85 Specifications
KEY SPECS | |
---|---|
MFG. Part # | WCD80541-E85 |
Brand | Willys Carbs |
Carburetor Barrels | 4-Barrel |
Fuel Type | E85 |
Choke Type | No Choke |
CFM Range | 800-899 CFM |
CFM | 800 CFM |
Carburetor Flange Type | 4-Barrel Square Bore |
Finish | Dichromate |
Material Type | Aluminum/Zinc |
Secondary Type | Mechanical |
New or Remanufactured | New |
GENERAL | |
Bolt Hole Pattern | 5.160" x 5.625" |
Sold in Quantity | Each |
