#4258019

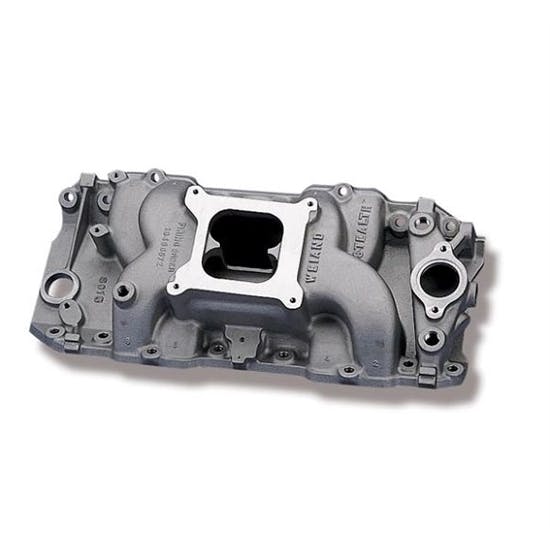

Weiand 8019 Stealth Intake Manifold 396ci-502ci
$369.95
each
In Stock
$419.28
Save $49.33
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Carbureted Fuel System Type, One Carburetor Quantity
See more details
Key Specs
MFG. Part # | 8019 |
Brand | Weiand |
Intake Manifold Type | Single Plane |
RPM Range | Idle-6,800 |
Material Type | Aluminum |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWeiand 8019 Details
Weiand 8019 Details
This manifold is designed to be used with performance oval port heads.
- High Rise/Dual Plane Design
- Port Size: 1.84 height 1.64" width
- Height: Front 4.75", Rear 5.75"
- Power band: Idle-6500 RPM
- Machined for Standard Deck Blocks
- 4150 Style Square Bore Mounting Flange
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Weiand 8019 Specifications
Weiand 8019 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 8019 |
Brand | Weiand |
Intake Manifold Type | Single Plane |
RPM Range | Idle-6,800 |
Material Type | Aluminum |
GENERAL | |
Speedway Motors Catalog Part # | 425-8019 |
Fuel System Type | Carbureted |
Carburetor Quantity | One |
Carburetor Flange Type | 4-Barrel Square Bore |
Finish | Natural |
EGR | No |
Intake Section Included | Complete |
Overall Height | 5.75" |
Bolt Hole Pattern | 5.160" x 5.625" |
GTIN Code | 032474801906 |
