#820ZAC5051

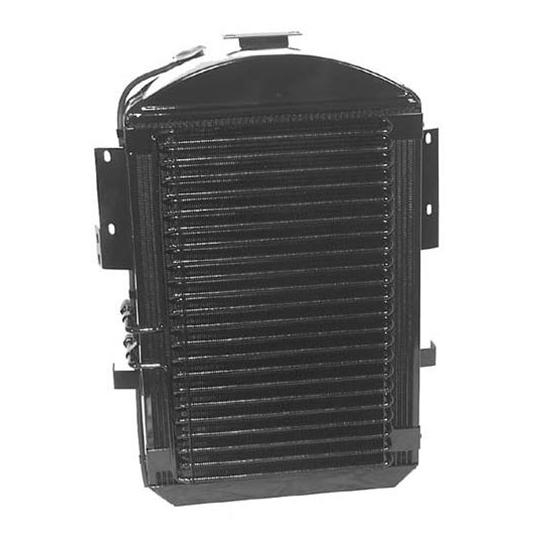

Walker Z-Ac505-1 Z-Series 1936 Chevrolet Radiator w/ A/C Condenser
2 Reviews
|
2 Questions
- Features a copper core w/ 1-piece brass tanks
- It uses a 15-18 lb. radiator cap and has a brass drain cock
- Includes heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
See More
$349.99
each
Discontinued
$1,174.99
Save $825.00
This item is currently not available
Shop all Walker Z-Series Radiators with A/C Condenser
Product Summary
Single Pass Radiator Style, Copper/Brass, Painted
- Features a copper core w/ 1-piece brass tanks
- It uses a 15-18 lb. radiator cap and has a brass drain cock
- Includes heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
- Will work with original, reproduction steel, or fiberglass grille shells
- This radiator with A/C condenser is specially designed for the 1936 Chevrolet
See more details
Key Specs
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Copper/Brass |
| Inlet Location | Center |
| Outlet Location | Lower passenger side |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWalker Radiator Works Z-AC505-1 Details
Walker Radiator Works Z-AC505-1 Details
Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.
- Works with original, reproduction steel, or fiberglass grille shells
- Copper core w/ 1-piece brass tanks
- Vertical tubes every 1/4" and 12 fins per inch of height
- Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
- Use a 15-18 lb. radiator cap
- Brass drain cock
- Simple bolt-in install
Chevy Chassis W/ Chevy Engine Application Chart (GIF)
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Item Details
With A/C CondenserCondenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a
Use Walker Fan Shroud Style B
Specs
Warranties
This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.
Guides & Documents
Walker Radiator Works Z-AC505-1 Specifications
Walker Radiator Works Z-AC505-1 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Z-AC505-1 |
| Brand | Walker Radiator Works |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Copper/Brass |
| Inlet Location | Center |
| Outlet Location | Lower passenger side |
| Row Quantity | 4 |
| Overall Width Range | 17.00" to 17.99" |
| Overall Width | 17.13" |
| Overall Height Range | 27.00" to 27.99" |
| Overall Height | 27.75" |
| Overall Thickness | 5.38" |
| Core Width Range | 16.00" to 16.99" |
| Core Width | 16.88" |
| Core Height Range | 22.00" to 22.99" |
| Core Height | 22.75" |
| Core Thickness | 2.75" |
| Finish | Painted |
| Cooling Fan | Not Included |
| Transmission Cooler | Yes |
| Shroud Included | No |
| GENERAL | |
| Filler Neck Height | 2.38" |
| Inlet Size | 1.50 |
| Color | Black |
| Fan Included | No |
| Notes | 1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C. |
| Sold in Quantity | Each |
