Part # 820ZAC5041

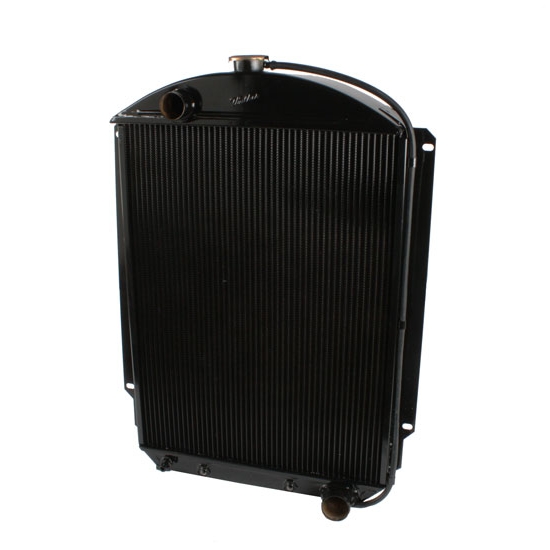

Walker Z-Ac504-1 Z-Series 1940-1941 Chevrolet Radiator w/ AC Condenser

by

|

$1,174.99

each

Discontinued


This item is currently not available

Shop all Walker Z-Series Radiators with A/C Condenser

Product Summary

40-41 Chevy, Single Pass Radiator Style, Copper/Brass

    Key Specs

    MFG. Part #Z-AC504-1
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeCopper/Brass
    FinishPainted

    Need To Know

    This Product Will Ship Free

    Need help? Call 800.979.0122

    Quick and Easy Returns

    Details

    Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

    • Copper core w/ 1-piece brass tanks
    • Vertical tubes every 1/4" and 12 fins per inch of height
    • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
    • Use a 15-18 lb. radiator cap
    • Brass drain cock
    • Simple bolt-in install

    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article.Radiator Cooling Performance.

    Item Details

    With A/C Condenser
    Condenser Fittings: #6 and #8 O-ring design
    Condenser Refrigerant: R-12 or R-134a
    Use Walker Fan Shroud Style B

    Charts

    Specs


    Warranties

    This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.

    Specifications

    KEY SPECS
    MFG. Part #Z-AC504-1
    BrandWalker Radiator Works
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeCopper/Brass
    FinishPainted
    GENERAL
    Inlet LocationUpper driver side
    Outlet LocationLower passenger side
    Row Quantity4
    Overall Width Range17.00" to 17.99"
    Overall Width17.25"
    Overall Height Range26.00" to 26.99"
    Overall Height26.25"
    Overall Thickness5.50"
    Core Width Range17.00" to 17.99"
    Core Width17.00"
    Core Height Range21.00" to 21.99"
    Core Height21.75"
    Core Thickness2.75"
    Cooling FanNot Included
    Transmission CoolerYes
    Shroud IncludedNo
    Inlet Size1.50
    ColorBlack
    Fan IncludedNo
    Notes1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.38" wide mounting flanges on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.
    Sold in QuantityEach
