Product Summary

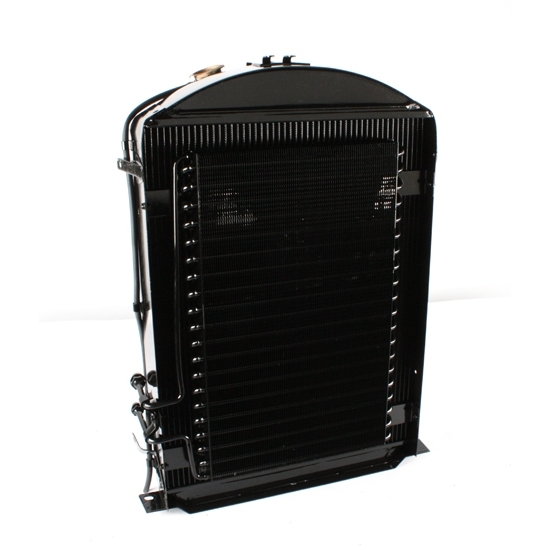

1932 Ford Model B, Single Pass Radiator Style, Copper

  • Radiators feature a 4-row, high-flow copper core
  • Features 12 Ga. steel side brackets w/ pre-drilled holes
  • Uses a 15-18 lb. radiator cap and has a brass drain cock
  • There are vertical tubes every 1/4" and 12 fins per inch of height
  • Works with original, reproduction, steel or fiberglass grille shells

Key Specs

MFG. Part #Z-AC491-2
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeCopper/Brass
FinishPainted

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • Works with original, reproduction, steel or fiberglass grille shells
  • 4-row copper core w/ brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Overall: 27" tall, 17" wide, 3" deep
  • Core Size: 19" tall, 16" wide, 2" deep

Ford Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.


Item Details

With A/C Condenser
Condenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a

Specs


Warranties

This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.

Specifications

KEY SPECS
MFG. Part #Z-AC491-2
BrandWalker Radiator Works
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeCopper/Brass
FinishPainted
GENERAL
Inlet LocationCenter
Outlet LocationLower passenger side
Row Quantity4
Overall Width Range17.00" to 17.99"
Overall Width17.68"
Overall Height Range26.00" to 26.99"
Overall Height26.75"
Overall Thickness4.50"
Core Width Range17.00" to 17.99"
Core Width17.25"
Core Height Range22.00" to 22.99"
Core Height22.25"
Core Thickness2.75"
Cooling FanNot Included
Transmission CoolerYes
Shroud IncludedNo
Filler Neck Height2.38"
Inlet Size1.50
ColorBlack
Fan IncludedNo
Notes1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.50" wide mounting feet on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.
Sold in QuantityEach
