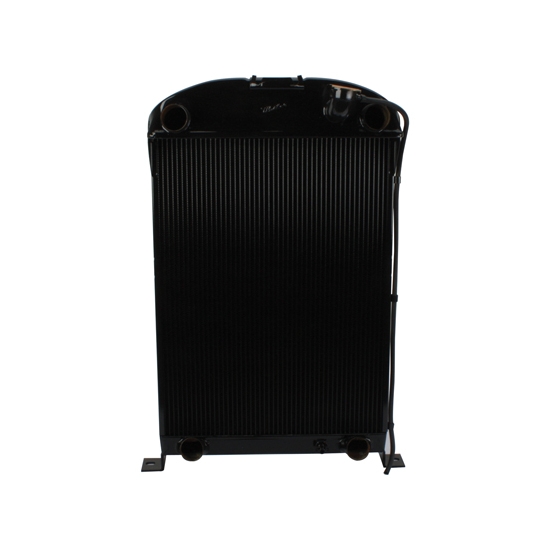

33-34 Ford, Single Pass Radiator Style, Copper, Painted

  • Features a copper core w/ 1-piece brass tanks
  • Designed to work with a 15-18 lb. radiator cap
  • It has vertical tubes every 1/4" and 12 fins per inch of height
  • Specifically designed for the 1933-1934 Ford Flathead V8 engine
  • Includes heavy duty 12 gauge steel side brackets with pre-drilled holes

Key Specs

MFG. Part #Z-498-1 FH
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeCopper
FinishPainted

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with  bored,  high compression, and supercharged Flathead engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Works with original, reproduction steel, or fiberglass grille shells.

  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install

Ford Chassis W/ Ford Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

Use with Electric Fan
NOTE: Unlike the original radiator, the top tank of this radiator is not recessed to clear a mechanical fan.
Use Walker Fan Shroud Style B

Specs


Specifications

KEY SPECS
MFG. Part #Z-498-1 FH
BrandWalker Radiator Works
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeCopper
FinishPainted
GENERAL
Inlet LocationBoth Sides
Outlet LocationBoth Sides
Row Quantity4
Overall Width Range17.00" to 17.99"
Overall Width17.38"
Overall Height Range29.00" to 29.99"
Overall Height29.5"
Overall Thickness6.75"
Core Width Range17.00" to 17.99"
Core Width17"
Core Height Range22.00" to 22.99"
Core Height22.38"
Core Thickness2.75"
Transmission CoolerNo
Shroud IncludedNo
Filler Neck Height2.38"
Inlet Size1.75
ColorBlack
Fan IncludedNo
Notes1/4" NPT fitting for drain. 1.50" wide mounting tabs on both sides.
Sold in QuantityEach
