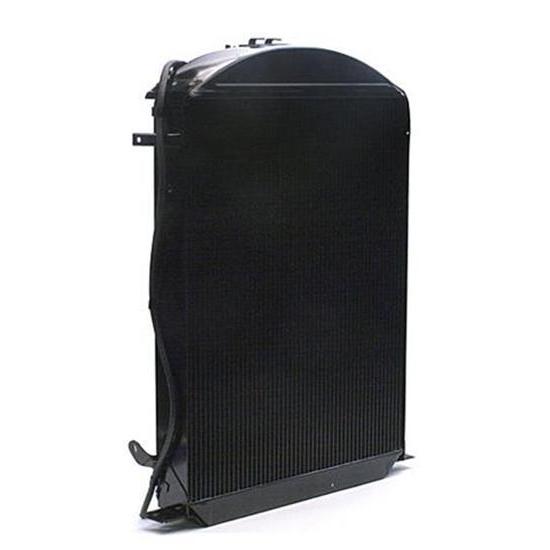

Walker Z-491-2 Z-Series 1932 Ford Radiator for Chevy Engine
Walker Z-491-2 Z-Series 1932 Ford Radiator for Chevy Engine

Walker Z-491-2 Z-Series 1932 Ford Radiator for Chevy Engine

1932 Ford Model B, Single Pass Radiator Style, Downflow Radiator Flow Direction, Copper

3 Reviews | 1 Answered Question
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Walker Z-491-2 Z-Series 1932 Ford Radiator for Chevy Engine
Walker Z-491-2 Z-Series 1932 Ford Radiator for Chevy Engine
Walker Z-491-2 Z-Series 1932 Ford Radiator for Chevy Engine
X
Walker Z-491-2 Z-Series 1932 Ford Radiator for Chevy Engine
Zoomed In Image
Part # 820Z4912
$969.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Radiator Style:
Single Pass
Radiator Flow Direction:
Downflow
Material Type:
Copper
Inlet Location:
Upper driver side
Outlet Location:
Lower passenger side
Row Quantity:
4
Overall Width Range:
17.00" to 17.99"
Overall Width:
17.68"
Overall Height Range:
26.00" to 26.99"
Overall Height:
26.75"
Overall Thickness:
4.25"
Core Width Range:
17.00" to 17.99"
Core Width:
17.38"
Core Height Range:
22.00" to 22.99"
Core Height:
22.25"
Core Thickness:
2.75"
Finish:
Painted
Transmission Cooler:
Yes
Shroud Included:
No
Filler Neck Height:
2.38"
Inlet Size:
1.50
Color:
Black
Fan Included:
No
MFG. Part #:
Z-491-2
Sold in Quantity:
Each

Info

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • Works with original, reproduction, steel or fiberglass grille shells
  • 4-row copper core w/ brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Overall: 27" tall, 17" wide, 3" deep
  • Core Size: 19" tall, 16" wide, 2" deep

Ford Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.


Notes

1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.50" wide mounting feet on both sides.
