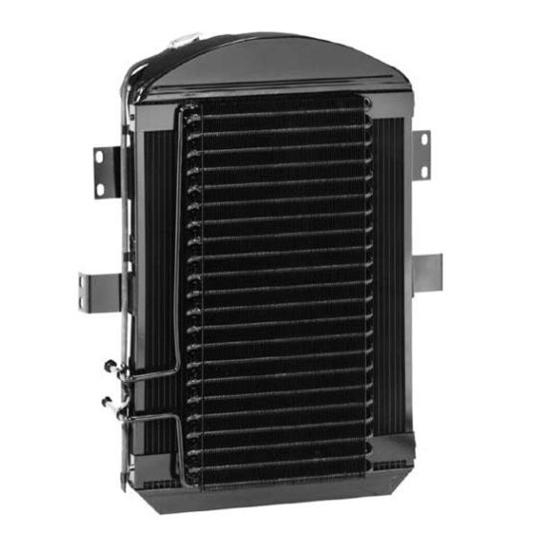

Walker C-Ac509-1 Cobra 1934-1935 Chevy Master Radiator w/ AC Condenser
Walker C-Ac509-1 Cobra 1934-1935 Chevy Master Radiator w/ AC Condenser

Walker C-Ac509-1 Cobra 1934-1935 Chevy Master Radiator w/ AC Condenser

1934 Chevy Master, Single Pass Radiator Style, Copper, Centered Inlet Location, 3 Row Quantity

1 Review | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Walker C-Ac509-1 Cobra 1934-1935 Chevy Master Radiator w/ AC Condenser
Walker C-Ac509-1 Cobra 1934-1935 Chevy Master Radiator w/ AC Condenser
Zoomed In Image
Part # 820CAC5091
$809.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Radiator Style:
Single Pass
Material Type:
Copper
Inlet Location:
Centered
Outlet Location:
Lower Right
Row Quantity:
3
Overall Width Range:
17.00" to 17.99"
Overall Width:
17.13"
Overall Height Range:
27.00" to 27.99"
Overall Height:
27"
Overall Thickness:
5.38"
Core Width Range:
17.00" to 17.99"
Core Width:
17"
Core Height Range:
22.00" to 22.99"
Core Height:
22"
Core Thickness:
2"
Finish:
Painted
Transmission Cooler:
Yes
Shroud Included:
No
MFG. Part #:
C-AC509-1
Filler Neck Height:
2.38"
Inlet Size:
1.50
Tube Style:
Downflow
Color:
Black
Sold in Quantity:
Each

Info

Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped.

Made to fit 34 Master and early 35 Master (which looks like the 34). Will not fit late 35 Master which looks like the 36 model and features a 2-piece (split) windshield, suicide doors, and a 113" wheelbase. Late 35 Masters should use the 36 radiator.

  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 17 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install w/ no modifications to grille or grille shell
  • Built-in oil cooler for use with automatic transmissions

Chevy Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

With A/C Condenser
Condenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a

Specs


Warranties

Walker is now extending their warranty on all Cobra Series radiators to a full ten years, affecting all Cobra Series units manufactured after January 1, 2007.

Notes

1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.
Some parts are not legal for use in California or other states with similar laws/regulations
