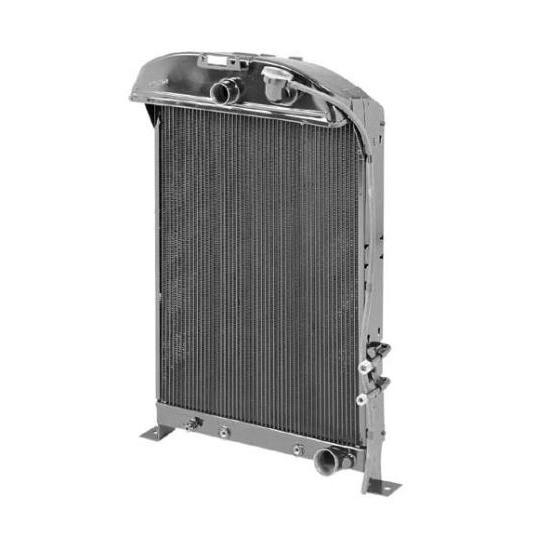

Walker C-Ac498-1 Cobra 1933-1934 Ford Radiator, Condenser-Chevy Engine
Walker C-Ac498-1 Cobra 1933-1934 Ford Radiator, Condenser-Chevy Engine
Discontinued
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Walker C-Ac498-1 Cobra 1933-1934 Ford Radiator, Condenser-Chevy Engine
X
Part # 820CAC4981
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Radiator Style:
Single Pass
Radiator Flow Direction:
Downflow
Material Type:
Copper
Inlet Location:
Center
Outlet Location:
Lower passenger side
Row Quantity:
3
Overall Width Range:
17.00" to 17.99"
Overall Width:
17.38"
Overall Height Range:
29.00" to 29.99"
Overall Height:
29.50"
Overall Thickness:
7.38"
Core Width Range:
17.00" to 17.99"
Core Width:
17.00"
Core Height Range:
22.00" to 22.99"
Core Height:
22.38"
Core Thickness:
2"
Finish:
Painted
Transmission Cooler:
Yes
Shroud Included:
No
Filler Neck Height:
2.38"
Inlet Size:
1.50
Color:
Black
Fan Included:
No
MFG. Part #:
C-AC498-1
Sold in Quantity:
Each
Info
Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit with heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions. They work with original, reproduction, steel or fiberglass grille shells.
- Copper core w/ 1-piece brass tanks
- Vertical tubes every 1/4" and 17 fins per inch of height
- Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
- Use a 15-18 lb. radiator cap
- Brass drain cock
- Simple bolt-in install w/ no modifications to grille or grille shell
- Use Walker Fan Shroud Style B
Ford Chassis W/ Chevy Engine Application Chart (GIF)
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Item Details
With A/C CondenserCondenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a
Specs
Warranties
Walker is now extending their warranty on all Cobra Series radiators to a full ten years, affecting all Cobra Series units manufactured after January 1, 2007.Notes
1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.75" wide mounting feet on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.Important Messages
- This product is discontinued.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
