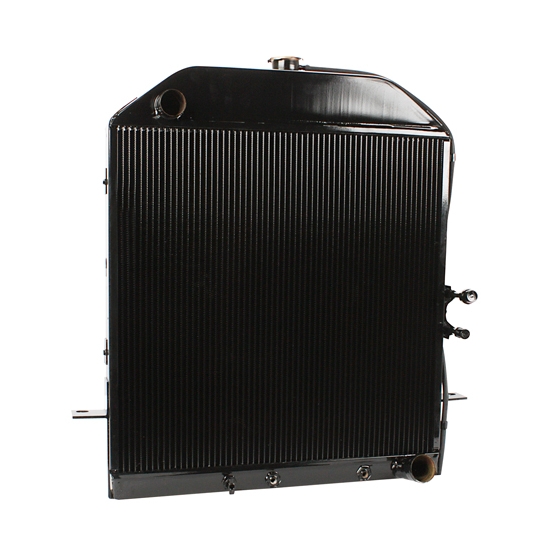

Walker C-Ac497-1 Cobra Ford 39 DL, 40-41 PU Rad/Condenser Chevy Engine
39-41 Ford, Single Pass Radiator Style, Copper, Upper Left Inlet Location, 3 Row Quantity
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit with heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions. They work with original, reproduction, steel or fiberglass grille shells.
- Copper core w/ 1-piece brass tanks
- Vertical tubes every 1/4" and 17 fins per inch of height
- Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
- Use a 15-18 lb. radiator cap
- Brass drain cock
- Simple bolt-in install w/ no modifications to grille or grille shell
- Use Walker Fan Shroud Style A
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Item DetailsChevy Engine, With A/C Condenser
Condenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a
WarrantiesWalker is now extending their warranty on all Cobra Series radiators to a full ten years, affecting all Cobra Series units manufactured after January 1, 2007.
Notes1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 2.00" wide mounting feet on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.
