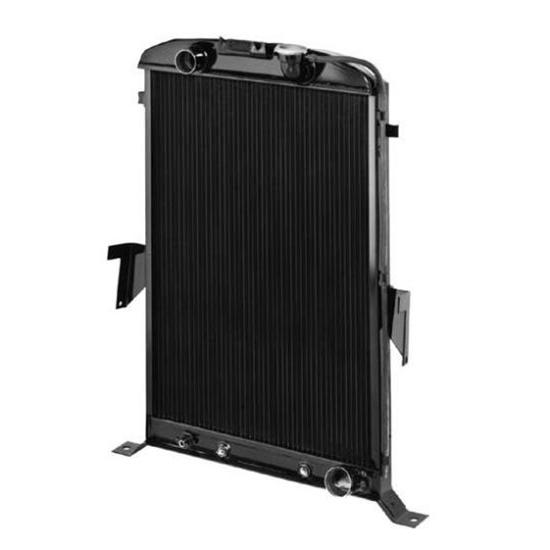

Walker C-488-1 Cobra 1935 Ford Radiator for Chevy Engine
2 Reviews
|
1 Question
- It uses a B-style Walker fan shroud
- Has a copper core w/ 1-piece brass tanks
- There are vertical tubes every 1/4" and 12 fins per inch of height
See More
$187.49
each
Out of Stock
$774.99
Save $587.50
This item is currently not available
Shop all Walker Cobra Radiators
Product Summary
Single Pass Radiator Style, Copper/Brass, Painted
- It uses a B-style Walker fan shroud
- Has a copper core w/ 1-piece brass tanks
- There are vertical tubes every 1/4" and 12 fins per inch of height
- Features heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
- It use a 15-18 lb. radiator cap and has a brass drain cock
See more details
Key Specs
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Copper/Brass |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Ineligible for Return
Contains items that cannot be returned
Walker Radiator Works C-488-1 Details
Walker Radiator Works C-488-1 Details
Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit with heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions. They work with original, reproduction, steel or fiberglass grille shells.
- Copper core w/ 1-piece brass tanks
- Vertical tubes every 1/4" and 17 fins per inch of height
- Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
- Use a 15-18 lb. radiator cap
- Brass drain cock
- Simple bolt-in install w/ no modifications to grille or grille shell
- Use Walker Fan Shroud Style B
Ford Chassis W/ Chevy Engine Application Chart (GIF)
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Specs
Warranties
This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.
Walker Radiator Works C-488-1 Specifications
Walker Radiator Works C-488-1 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | C-488-1 |
| Brand | Walker Radiator Works |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Copper/Brass |
| Inlet Location | Upper driver side |
| Outlet Location | Lower passenger side |
| Row Quantity | 3 |
| Overall Width Range | 17.00" to 17.99" |
| Overall Width | 17.13" |
| Overall Height Range | 27.00" to 27.99" |
| Overall Height | 27.25" |
| Overall Thickness | 3.50" |
| Core Width Range | 17.00" to 17.99" |
| Core Width | 17" |
| Core Height Range | 22.00" to 22.99" |
| Core Height | 22.88" |
| Core Thickness | 2.00" |
| Finish | Painted |
| Cooling Fan | Not Included |
| Transmission Cooler | Yes |
| Shroud Included | No |
| GENERAL | |
| Filler Neck Height | 2.38" |
| Inlet Size | 1.50 |
| Color | Black |
| Fan Included | No |
| Notes | 1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 2.68" wide mounting feet on both sides. |
| Sold in Quantity | Each |
