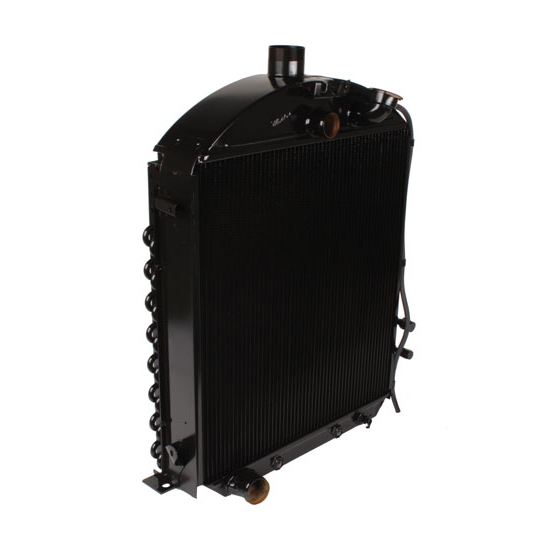

Walker B-Z-Ac487-1 Z-Series 28-29 Model A Radiator/Condser Ford Engine
- This product is discontinued.
- This item ships directly from the manufacturer. It may take an additional business days for Walker Radiator Works to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
- This item 820BZAC4871 is made to order. It will be shipped from our warehouse when it is produced.
Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.
- Works with original, reproduction, steel or fiberglass grille shells
- Copper core w/ 1-piece brass tanks
- Vertical tubes every 1/4" and 12 fins per inch of height
- Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
- Use a 15-18 lb. radiator cap
- Brass drain cock
- Simple bolt-in install w/ no modifications to grille or grille shell
Small Block Ford engines can take advantage of the less expensive and more readily available "Chevy" radiators by using a passenger side inlet water pump (such as our 910-15544) and get additional steering box/fuel pump clearance to boot!
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
