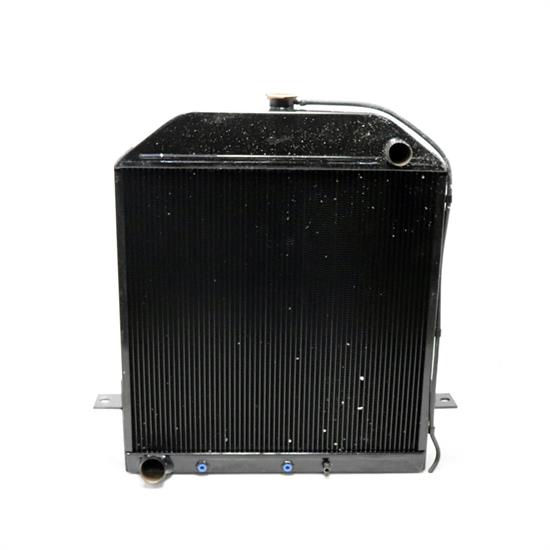

Walker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford
Walker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford

Walker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford

1939 Ford Deluxe, Single Pass Radiator Style, Copper, Upper passenger side Inlet Location

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Walker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford
Walker B-Z-497-1 Z-Serie 39 DL, 40-41 Ford Pickup Radiator-Ford
X
Zoomed In Image
Part # UP108477
Save 11%
$719.99
$809.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Radiator Style:
Single Pass
Material Type:
Copper
Inlet Location:
Upper passenger side
Outlet Location:
Lower driver side
Row Quantity:
4
Overall Width Range:
21.00" to 21.99"
Overall Width:
21.38"
Overall Height Range:
25.00" to 25.99"
Overall Height:
25.38"
Overall Thickness:
3.38"
Core Width Range:
21.00" to 21.99"
Core Width:
21"
Core Height Range:
20.00" to 20.99"
Core Height:
20"
Core Thickness:
2.75"
Finish:
Painted
Transmission Cooler:
No
MFG. Part #:
B-Z-497-1
Filler Neck Height:
.88"
Inlet Size:
1.50
Tube Style:
Downflow
Color:
Black
Sold in Quantity:
Each

Info

This is Garage Sale priced because it has some dings/dents from shipping.

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • Works with original, reproduction steel, and fiberglass grille shells
  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install
  • Use Walker Fan Shroud Style A

Small Block Ford engines can take advantage of the less expensive and more readily available "Chevy" radiators by using a passenger side inlet water pump (such as our 910-15544) and get additional steering box/fuel pump clearance to boot!

Ford Chassis W/ Ford Engine Application Chart (GIF)

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS



Notes

1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 2.00" wide mounting feet on both sides.
Some parts are not legal for use in California or other states with similar laws/regulations
