#725964471
Vintage Air 964471 1968-69 Chevelle w/ A/C GenIV SureFit Complete Kit
- Features variable blower speed and dash/floor/defrost blend
- Specifically designed for the 1968-1969 Chevelle with factory A/C
- Uses an exclusive fully electronic microprocessor control system eliminate cables or vacuum connections
See More
$1,825.00
kit
Factory Shipped
$1,894.99
Save $69.99
This part will be shipped by the manufacturer. We estimate this item will ship on or before August 14th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
With Factory Air Conditioning A/C Compatibility
- Features variable blower speed and dash/floor/defrost blend
- Specifically designed for the 1968-1969 Chevelle with factory A/C
- Uses an exclusive fully electronic microprocessor control system eliminate cables or vacuum connections
- System includes the Electronic Cable Converters which convert existing factory controls to electronic operation
- A separate high capacity copper parallel-flow heat coil and aluminum plate and fin cooling coils provide outstanding performance and instant temperature adjustments
Comes as a Kit
View Kit Components
See more details
Key Specs
| A/C Compatibility | With Factory Air Conditioning |
| A/C Kit Style | Complete System |
| Dash Vent Location | In-dash |
| Uses Factory Controls | No |
| Control Panel Included | Yes |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyVintage Air 964471 Details
Vintage Air 964471 Details
Vintage Air Sure Fit Series - Custom Order Processing
This custom part is created specifically for your vehicle. Once we receive your order you will be contacted (Mon-Fri 8am-5pm CST) to obtain details about your car to ensure proper fitment and to finalize your order!
The Gen IV is Vintage Air's most powerful and intelligent climate control system. The Gen IV uses an exclusive fully electronic microprocessor control system eliminate cables or vacuum connections. Separate high capacity copper parallel-flow heat coil and aluminum plate and fin cooling coils provide outstanding performance and instant temperature adjustments. This new Chevelle Sure Fit system includes a backlit three-lever control panel that bolts in the stock dash location. Additional features include variable blower speed and dash/floor/defrost blend . Sure Fit Systems are engineered specifically for each vehicle application and require absolutely minimal alteration to the vehicle for installation
- Fully electronic operation
- No cables or vacuum controls
- 1968-69 Kit includes backlit three-lever control panel that bolts in the stock dash location for electronic operation
- Micro-processor controlled coil temperature monitor
- No capillary tube to install
- Separate high capacity heat and cool coils
- Aluminum plate/fin A/C coil (most efficient evaporator design available)
- Copper/brass parallel flow heater coil
- Blend air door for instant temperature adjustment
- Infinite dash / floor air blend (in most applications)
- Infinite defrost / floor air blend with dedicated defrost option -Stamped steel firewall cover plate -All Gen IV systems allow for optional smooth firewall configuration (must use modified hose kit)
- Positive shut off solenoid operated heater control valve in max A/C

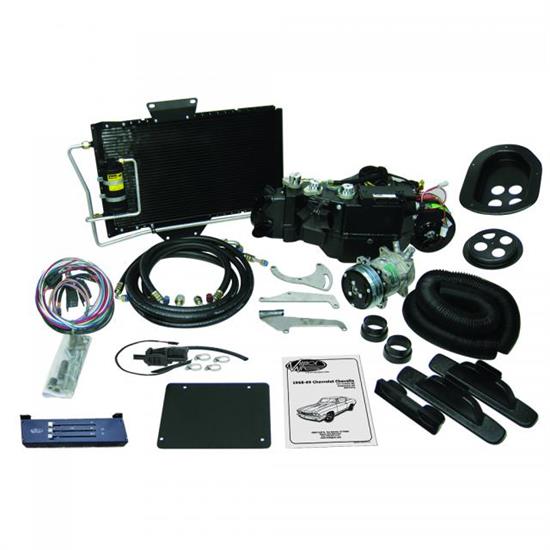

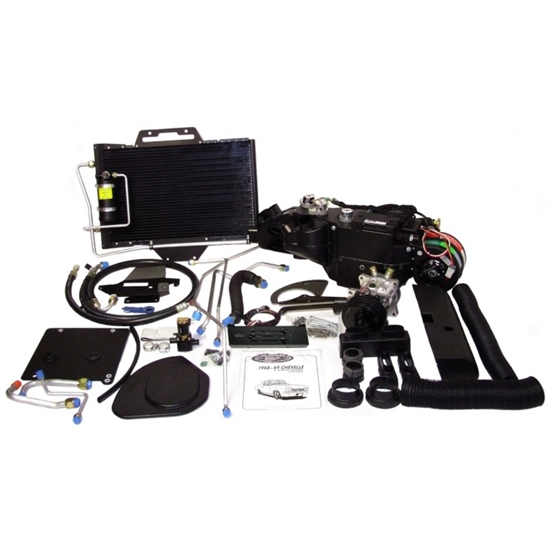

Complete Kits include:
- Evaporator Kit
- Control Panel Conversion Kit
- Compressor
- Compressor Mounting Bracket
- Hose Kit
- Condenser Kit w/ Drier
- Safety Switch
Charts
561068 Evaporator Kit Installation
473068 Control Panel Conversion
784165 Evaporator Accessory Kit Breakdown
526670 Standard Hose Kit Assembly
526671 Modified Hose Kit Assembly
021167 1968 Condenser Assembly with Drier
021168 1969 Condenser Assembly with Drier
Guides & Documents
Vintage Air 964471 Specifications
Vintage Air 964471 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 964471 |
| Brand | Vintage Air |
| A/C Compatibility | With Factory Air Conditioning |
| A/C Kit Style | Complete System |
| Dash Vent Location | In-dash |
| Uses Factory Controls | No |
| Control Panel Included | Yes |
| Drier Included | Yes |
| A/C Vents Included | No |
| Defrost Vents Included | Yes |
| A/C Condenser Included | Yes |
| A/C Compressor Included | Yes |
| Hoses Included | Yes |
| Wiring Included | Yes |
| A/C Pulley Included | Yes |
| GENERAL | |
| Speedway Motors Catalog Part # | 725-964471 |
| Main Housing Included | Yes |
| Vent Hose Included | Yes |
| Water Valve Included | Yes |
| Water Valve Style | Electric |
| Fittings Included | Yes |
| 508 Style V-Belt Pump and Pulley Included | Yes |
| A/C Evaporator Material | ABS Plastic |
| A/C Evaporator Finish | Black |
| Sold in Quantity | Kit |
| GTIN Code | 842829141393 |
| Notes | Vintage Air SureFit Complete Kits are tailor-built to your vehicle. If you have questions about specific components, please speak with one of our Vintage Air specialists |
