Vintage Air 961060 1961-62 Corvette GenIV SureFit Complete Kit

Vintage Air Sure Fit Series - Custom Order Processing
This custom part is created specifically for your vehicle. Once we receive your order you will be contacted (Mon-Fri 8am-5pm CST) to obtain details about your car to ensure proper fitment and to finalize your order!

The Gen IV is Vintage Air’s most powerful and intelligent climate control system. The Gen IV uses an exclusive fully electronic microprocessor control system eliminate cables or vacuum connections. Separate high capacity copper parallel-flow heat coil and aluminum plate and fin cooling coils provide outstanding performance and instant temperature adjustments. This new SureFit System includes exclusive Electronic Cable Converters which convert existing factory controls to electronic operation. Additional features include variable blower speed and dash/floor/defrost blend. SureFit Systems are engineered specifically for each vehicle application and require absolutely minimal alteration to the vehicle for installation.

• Fully electronic operation
• No cables or vacuum controls
• 1961-62 Kit includes individual Rotary Electronic Controls for electronic operation
• Micro-processor controlled coil temperature monitor.No capillary tube to install!
• Separate high capacity heat and cool coils
• Aluminum plate/fin A/C coil (most efficient evaporator design available)
• Copper/brass parallel flow heater coil
• Blend air door for instant temperature adjustment
• Infinite dash/floor air blend (in most applications)
• Infinite defrost / floor air blend with dedicated defrost option
• Steel firewall cover plate
• All Gen IV systems allow for optional smooth firewall configuration (must use modified hose kit)
• Positive shut off solenoid operated heater control valve in max A/C

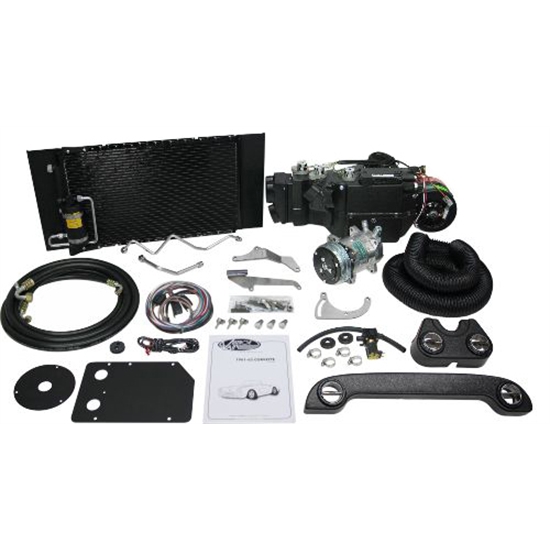

Complete Kits include:

• Evaporator Kit
• Control Panel Conversion Kit
• Compressor
• Compressor Mounting Bracket
• Hose Kit
• Condenser Kit w/ Drier
• Safety Switch

561060 Evaporator Kit Installation

473160 Control Panel Conversion

781062 Evaporator Accessory Kit Breakdown

521055 Standard Hose Kit Assembly (Driver Side Compresor Only)

521056 Standard Hose Kit Assembly (Passenger Side Compresor Only)

521057 Modified Hose Kit Assembly

021158 Condenser Assembly with Drier

027059 Condenser Assembly without Drier

Vintage Air SureFit Series Order Form
