Vintage Air 961059 1958-60 Corvette GenIV SureFit Complete Kit
Complete System A/C Kit Style, In-dash Dash Vent Location, Uses Factory Controls



Important Messages:
- This item ships directly from the manufacturer. It may take an additional 10 business days for Vintage Air to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Details
Info
Vintage Air Sure Fit Series - Custom Order Processing
This custom part is created specifically for your vehicle. Once we receive your order you will be contacted (Mon-Fri 8am-5pm CST) to obtain details about your car to ensure proper fitment and to finalize your order!
The Gen IV is Vintage Air’s most powerful and intelligent climate control system. The Gen IV uses an exclusive fully electronic microprocessor control system eliminate cables or vacuum connections. Separate high capacity copper parallel-flow heat coil and aluminum plate and fin cooling coils provide outstanding performance and instant temperature adjustments. This new SureFit System includes exclusive Electronic Cable Converters which convert existing factory controls to electronic operation. Additional features include variable blower speed and dash/floor/defrost blend. SureFit Systems are engineered specifically for each vehicle application and require absolutely minimal alteration to the vehicle for installation.
- Fully electronic operation
- No cables or vacuum controls
- 1958-60 Kit includes individual Rotary Electronic Controls for electronic operation
- Micro-processor controlled coil temperature monitor.No capillary tube to install!
- Separate high capacity heat and cool coils
- Aluminum plate/fin A/C coil (most efficient evaporator design available)
- Copper/brass parallel flow heater coil
- Blend air door for instant temperature adjustment
- Infinite dash/floor air blend (in most applications)
- Infinite defrost / floor air blend with dedicated defrost option
- Steel firewall cover plate
- All Gen IV systems allow for optional smooth firewall configuration (must use modified hose kit)
- Positive shut off solenoid operated heater control valve in max A/C

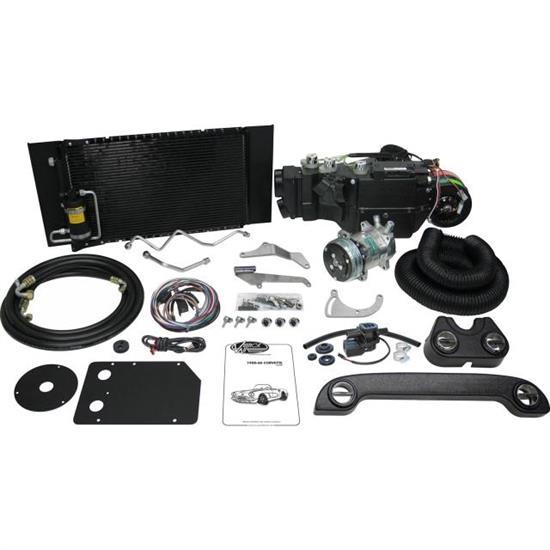

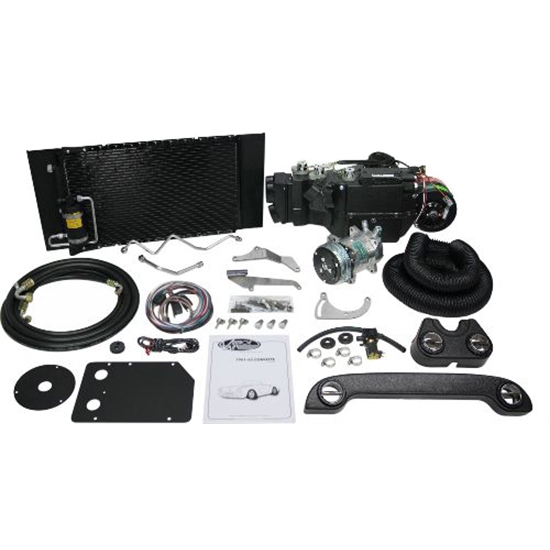

Complete Kits include:
- Evaporator Kit
- Control Panel Conversion Kit
- Compressor
- Compressor Mounting Bracket
- Hose Kit
- Condenser Kit w/ Drier
- Safety Switch
561059 Evaporator Kit Installation
473158 Control Panel Conversion
781059 Evaporator Accessory Kit Breakdown
521055 Standard Hose Kit Assembly (Driver Side Compresor Only)
521056 Standard Hose Kit Assembly (Passenger Side Compresor Only)
521057 Modified Hose Kit Assembly
021158 Condenser Assembly with Drier
What's In The Kit
-
Vintage Air 561059 1958-60 Corvette GenIV SureFit Evaporator KitPart # 725561059Qty x 1
-
Condenser KitPart # 725961059.1Qty x 1
-
CompressorPart # 725961059.2Qty x 1
