Part # 9109510

Universal 3/16 PVF Coated Steel Brake Line Installation Kit,-3AN

by

|

  • Considered a premium line, Poly-Armour hard line should be used on any vehicle that will see any type of harsh environment including snow, road treatments, salt, air, dirt/gravel etc.
  • PVF Poly-Armour coated line is the perfect choice for those after race chassis washes each week or any street rod fabricator wanting a hard line application that will last for years

$70.99

kit

In Stock

$73.94

Save $2.95


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, Steel, 0.188" Tube O.D., -3 AN

  • Considered a premium line, Poly-Armour hard line should be used on any vehicle that will see any type of harsh environment including snow, road treatments, salt, air, dirt/gravel etc.
  • PVF Poly-Armour coated line is the perfect choice for those after race chassis washes each week or any street rod fabricator wanting a hard line application that will last for years
  • Utilizes -3 AN 37-degree fittings to ensure your system stays leak free for many years to come!
  • Clamps and hardware included
  • Ideal for creating custom brake lines

Comes as a Kit

Key Specs

BrandSpeedway Motors
Material TypeSteel
Tube O.D.0.188"
Overall Length25 ft.
AN Size-3 AN

Need To Know

Free Shipping on Orders Over $149

Quick and Easy Returns

Details

You know how frustrating it can be to try to use the OEM brake lines and hoses. Speedway makes it easy with this steel brake line kit that includes new lines and fittings to make your job less stressful.

Kit Includes:

  • (1) 25 Ft. Roll of Speedway 3/16 Inch PVF Coated Steel Brake Line
  • (1) Pack of 12 Speedway 3/16 Stainless Steel Single Line Clamps
  • (2) Bags of 6 Steel AN3 Tube Nuts (12 nuts total)

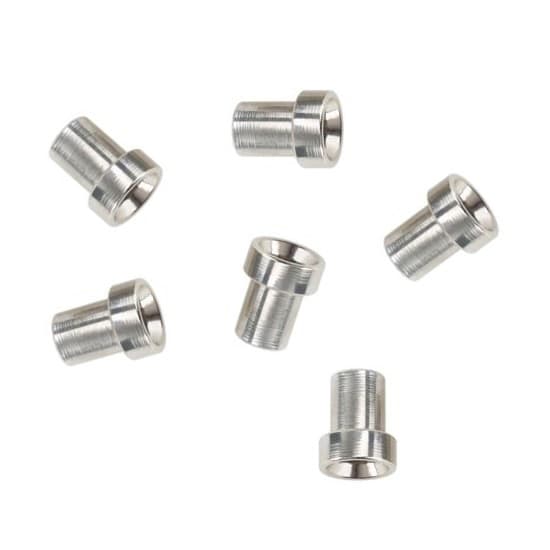

  • (2) Bags of 6 Steel AN3 Tube Sleeve (12 sleeves total)

Learn more about flaring lines for our automotive fittings by reading our tech article. The Principles of Automotive Fittings.

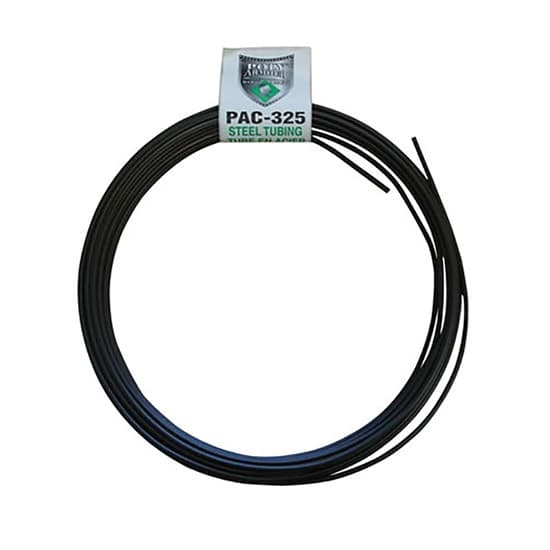

Speedway 3/16 Inch PVF Coated Steel Brake Line

Now available for your 3/16" brake line consideration is a new PVF Poly-Armour Poly-Vinyl Fluorine coated brake line.

  • PVF coating is a highly durable 'plastic' coating that is 'baked and cured' to the line for a durable finish that provides a clean look and appearance with a dark olive green color
  • This provides extra protection from corrosion, debris, and road surfacing solutions
  • Also offers superior bend-ability without kinking and bends easier than standard brake line tubing
  • This makes Poly-Armour the easiest line to work with-period!
  • Underneath the PVF coating is a double-wall, low carbon steel, copper brazed tubing which meets all international and U.S. requirements for brake tubing
  • Considered a premium line, Poly-Armour hard line should be used on any vehicle that will see any type of harsh environment including snow, road treatments, salt, air, dirt/gravel etc.
  • PVF Poly-Armour coated line is the perfect choice for the racer for those weekend after race chassis washes week after week or any street rod fabricator wanting to utilize a hard line application for that beautiful finish that will last for years
  • Available in a 25' roll of 3/16" line

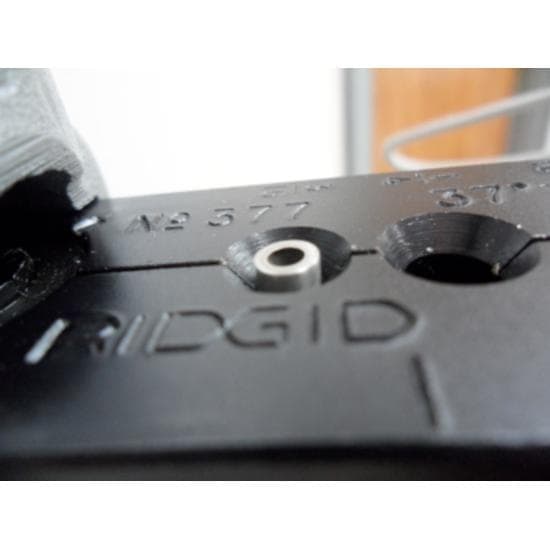

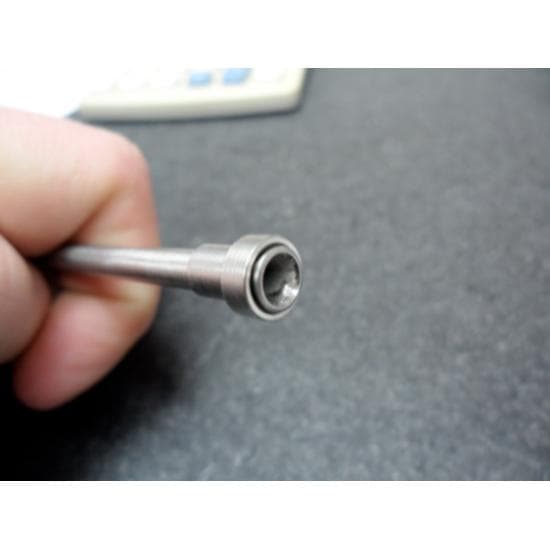

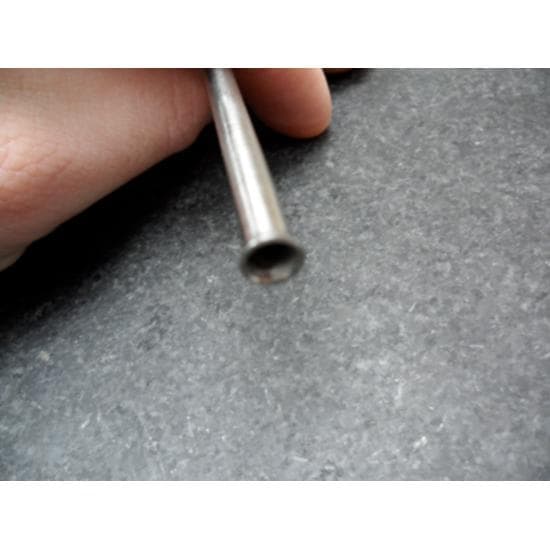

  • This line bends easily and smoothly with hand tools and can be flared with a 37° AN flaring tool, or 45° double flaring tool

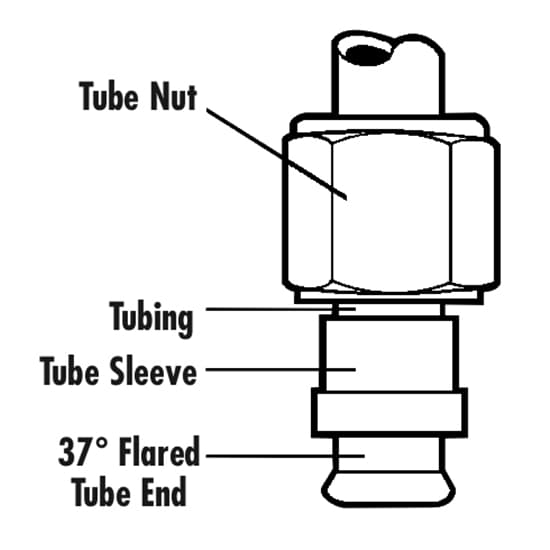

  • Use in conjunction with our 3/8"-24 inverted flare male brake line nuts, or AN tube nuts and sleeves



Speedway 3/16 Stainless Steel Single Line Clamps

Brake and fuel lines are something you should mount right the first time.

  • Using our stainless steel tube clamps ensures you never have to replace them
  • Clamps included are for 3/16" line
  • Bag of 12 tabs with stainless steel 10-32 button head screws
  • 1/2" wide and 3/4" long

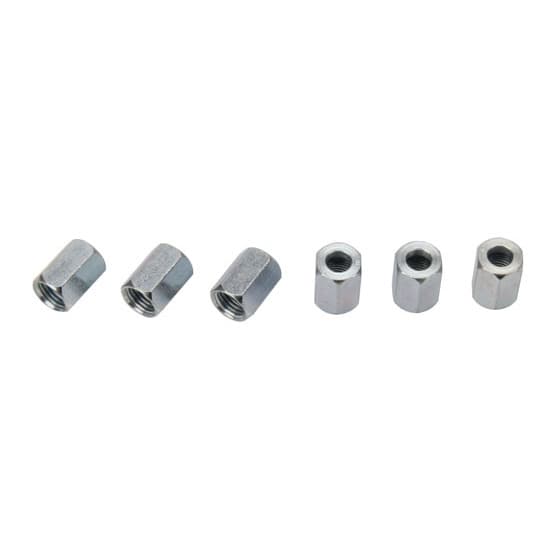

Steel AN3 Tube Nuts

  • All steel AN 3 tube nuts are the go-to for your custom brake fluid system
  • Provides the best seal utilizing a 37 degree flare to ensure your system stays leak free for many years to come!
  • AN 3 Female
  • Sold in a bag of 6 each



Charts

Specifications

KEY SPECS
BrandSpeedway Motors
Material TypeSteel
Tube O.D.0.188"
Overall Length25 ft.
AN Size-3 AN
GENERAL
Fitting End A37° -3 AN
FinishPoly-Vinyl Fluorine (PVF)
Sold in QuantityKit
Hardware IncludedYes
