Universal 18 Inch Double D Steering Shaft and U-Joint Kit
Universal 18 Inch Double D Steering Shaft and U-Joint Kit

Universal 18 Inch Double D Steering Shaft and U-Joint Kit

Universal Fit, 18" Overall Length, 0.75" Overall Diameter, Steel

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Universal 18 Inch Double D Steering Shaft and U-Joint Kit
Universal 18 Inch Double D Steering Shaft and U-Joint Kit
Universal 18 Inch Double D Steering Shaft and U-Joint Kit
Universal 18 Inch Double D Steering Shaft and U-Joint Kit
Universal 18 Inch Double D Steering Shaft and U-Joint Kit
X
Universal 18 Inch Double D Steering Shaft and U-Joint Kit
Universal 18 Inch Double D Steering Shaft and U-Joint Kit
Universal 18 Inch Double D Steering Shaft and U-Joint Kit
Zoomed In Image
Part # 91603041
$126.99
each
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Includes Universal Double D Steering Shaft & U-Joint
  • Overall length of steering shaft 18", overall diameter 0.75"
  • Universal joint is 3.875 inches long and 1.375 inches in diameter
  • Forged Vanadium steel yokes and u-joint
  • Features needle bearing u-joints

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Overall Length:
18"
Overall Diameter:
0.75"
Material Type:
Steel
Sold in Quantity:
Kit

Info

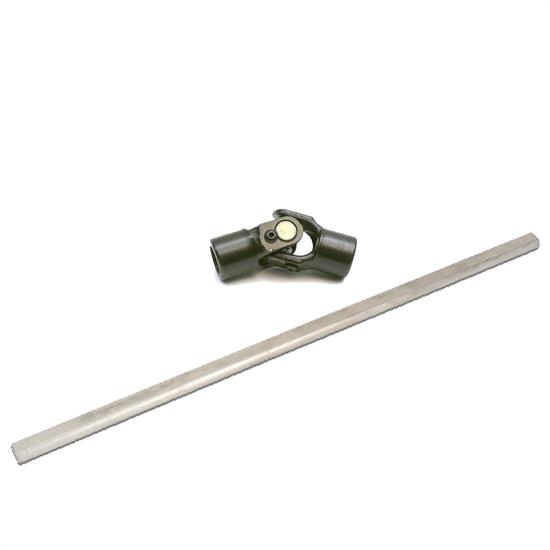

Create your own steering systems and designs with quality components from Speedway Motors. We packed together a stick of our Double D steering shaft and a Sweet U-joint to make designing and fabricating your unique steering shaft that much simpler!

Kit Contains:

  • (1) Speedway Motors 18 Inch Double D Steering Shaft
  • (1) Sweet Mfg Universal Steering U-Joint, 3/4 DD to 3/4 DD

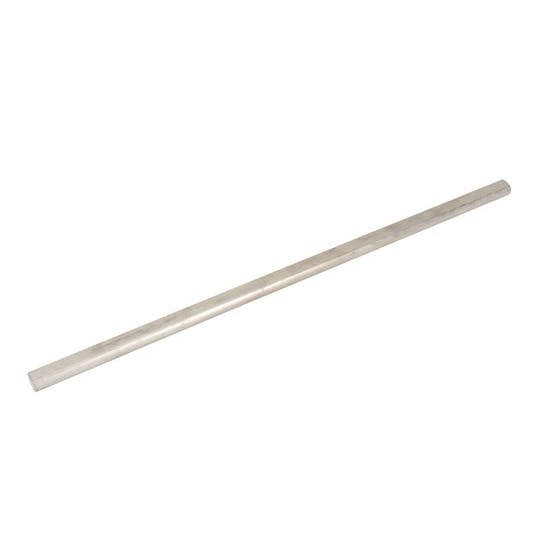

Speedway Motors 18 Inch Double D Steering Shaft

Speedway now offers a steering shaft that is 3/4" DD machined the entire length of the shaft. This makes it easier to set up your steering. The carbon steel steering shaft comes in 18".

  • Overall Length: 18 Inches
  • Overall Diameter: .75"

Sweet Mfg Universal Steering U-Joint, 3/4 DD to 3/4 DD

Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. This universal joint is 3.875 inches long and 1.375 inches in diameter.

  • Full complement bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing
  • Features needle bearing u-joints
  • U-Joint=3.875" L x 1.375" D
  • 30 Degree angle
  • Set screw included

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the u-joint for your specific application.

Installation Tips

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Steering Shaft, Fully Machined Double D Shaft, 18 Inch
    Qty x 1
  • Sweet Mfg Steering U-Joint, 3/4 Inch DD to 3/4 Inch DD, Universal
    Qty x 1

Reviews

Q & A

Videos & Articles
  • Learn how to hook up a horn button in your vehicle. Watch our video on the install of an Ididit car horn button and our video on turn signal synchronization.
  • Learn how to determine steering box, rack, and spline sizes.
  • How to install an electronic power steering unit in a micro sprint and the benefits of using power steering. This article includes which parts to use to complete your power steering installation.
  • Designing a steering system for your street rod or muscle car can be tricky. In this buyer's guide we'll show you how to choose the right steering U-joints, steering shaft, and accessories to complete the job quickly and safely.
  • When it comes to a traditional style build on an early hot rod it just has to be rolling on a solid front axle of some sort. In this buyer's guide we take you through I-beam and round tube solid axles, spindle choices, radius rod needs, and more.
  • If you are confused as to how that new steering wheel you want is going to attach to your project's steering column then this buyer's guide should be your first visit before adding that new wheel to your shopping list.
  • Jared demonstrates how to install a Sweet Manufacturing collapsible steering column in his 3rd gen Camaro. The collapsible portion not only makes the column safer in a crash but also gives you the length adjustment.
