Product Summary

Rear Position, Splined Bolt Pattern, Vented Rotor Type

    Key Specs

    PositionRear
    Bolt PatternSplined
    Rotor Diameter10.40 Inch
    Rotor TypeVented
    Caliper PistonsFour

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Ultra Lite Brakes 94031000 Details

    Save weight and increase braking with this lightweight rear brake kit.  The .810"x 10.4" rotor is ceramic coated for durability and performance and is mated to a billet caliper.  The NEW improved FeatherLite Sprint Inboard caliper uses three retaining pins to secure the brake pads.  Also NEW is the heavy duty 4 bolt Inboard Caliper Bracket available for both standard and small bells.  The FeatherLite Caliper combined with our Ceramic Coated Titanium Rotor offers the best braking ability for your Sprint Car!

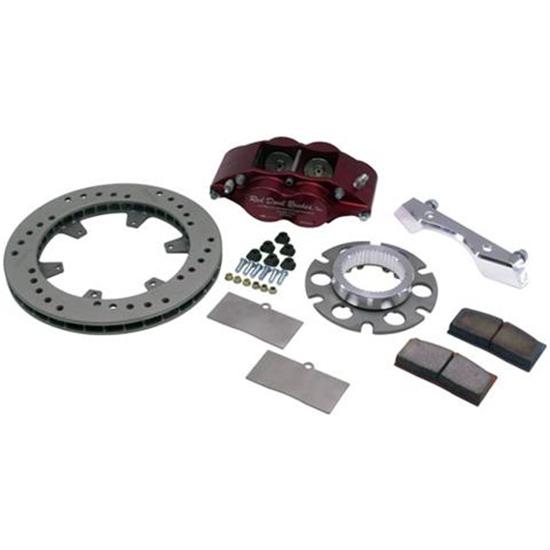

    Ultra Lite Sprint Inboard Brake Kit, Standard Titanium Rotor, 2 Bolt Mount

    Lightest rotating mass of any .810 sprint car brake. Weighs only 2 lb, 11 oz for titanium. 4 piston caliper and brackets.

    Includes:

    • (1) rotor
    • (2) pads
    • (1) caliper
    • bracket
    • clamp
    • hardware

    Ultra Lite Brakes 94031000 Specifications

    KEY SPECS
    MFG. Part #94031000
    BrandUltra Lite Brakes
    PositionRear
    Bolt PatternSplined
    Rotor Diameter10.40 Inch
    Rotor TypeVented
    Caliper PistonsFour
    Caliper FinishAnodized
    ColorRed
    Parking Brake ProvisionNo
    Rotor ShapeRound
    Hardware IncludedYes
    Rotor StyleDrilled
    Front Rotor IncludedNo
    Front Caliper IncludedNo
    Rear Caliper IncludedYes
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Rear Rotor IncludedYes
    GENERAL
    Spline Count46
    Spline OD2.94"
    Spline Length.88"
    Rotor Hat Bolt Pattern6 x 5.50"
    Rotor Thickness.81"
    Sold in QuantityKit
    NotesIncludes rotor, caliper, inboard caliper bracket, hub, pads, and bolts.
