Ultimate Racecar Setup Kit

The ultimate racing set up kit. Everything you need to make sure your car is perfect on race day. Longacre scales are perfect for setting weight just the way you want it and include a handy case for easy transport. Setting cast, camber and toe are a breeze with the included measuring tools. And don't forget a thing with set -up sheets by Longacre.



Scale Set

• Push one button for all 4 wheel weights plus cross weight
• Push a second button for all partial %
• Baseline memory recall
• Heavy duty red HiFlex cables with billet AN connectors
• 4 LMF™ swirl finished 15" x 15" low profile pads
• 1500 lb. per pad capacity, 6000 lb. total
• 2-year limited warranty



Alignment Turn Plates

Get your wheels lined up correctly with a set of these Speedway Alignment turn plates. At only 5/16 in. thick, you don't need a jack or lift to roll onto these turn plates. They're made from aluminum and are clearly marked at 0, 10, 15, and 20 degrees, with one degree increments in between.

The Speedway alignment turn plates have a smooth handle cut into them for portability, and the bottoms feature a thrust bearing between the plates, so turning the wheels for precise alignment is smooth and accurate.



Caster Camber Gauge

These magnetic caster/camber gauges from DECO allow you to make precision front-end caster and camber adjustments quickly, easily, and accurately.  They feature quality cast aluminum construction and are machined from both ends with lazer-etched anodized finishes for precise readings every time.  DECO alignment gauges feature a fourth bubble that works as a level and spindle angle indicator.  These quality gauges come with a magnetic adapter to accommodate all of your precision chassis setup needs.  They also include a convienient carrying case with handle for easy transport and storage.  Choose the best when it comes to tools for the at-home do-it-yourselfer, choose DECO chassis alignment tools for sophisticated equipment that anyone can use, all at a price anyone can afford!

• High-quality aluminum
• Measures +8° to -4° caster range, +6° to -6° camber range
• Gauge machined at both ends for easy and accurate caster settings
• Anodized and laser-etched for easy readings
• Equipped with magnetic adapter
• Includes carrying case

For more information on proper vehicle alignment tools and procedures, check out our tech articles; Frontend Alignment Tools and Procedures and Frontend Alignment Basics.

Caster Angle Illustration (GIF)



Toe-In Plates

Here's the quickest and simplest way to measure toe-in. Rest one of these plates against the tire on each side and use a tape measure.  Longacre® toe plate comes with two tape measures.

• Quickest and simplest way to measure toe-in
• Rest one of these plates against the tire on each side and measure toe directly using the 2 tapes (included)
• Formed design is rigid for accuracy and stays put against the tire
• Dimensions: 23-1/2" x 9"



Stagger Stock Tool

This stagger stick is a polished aluminum gauge that measures tire circumference from 65" to 115". No need to jack up the car to measure stagger. Assembly required.



Tire Pressure Gauge

Get precision tire pressure readings with Longacre® 52024 tire pressure gauge. Tire pressure gauge is mechanical and ranges from 0-30 PSI. Features a 2 inch glow in the dark dial face. Includes air pressure release button. 14 inch hose length.

• Mechanical gauge
• 0-30 PSI range
• Air pressure release button
• Internal gauge damper for more accurate readings and longer life
• 14.00" hose length
• Ball chuck included
• 2.00" glow in the dark dial face
• Does not hold pressure



Angle Finder Tool

These handy direct-read angle finder gauges from DECO are perfect for setting driveline pinion angle or deterlightningng level on a race car or roll bar installation, and critical chassis components such as panhard bar, etc. They feature a magnetic base to easily attach to metal squares for quick readability to check angles from 0-90 degrees. Choose the best when it comes to tools for the at-home do-it-yourselfer, choose DECO chassis alignment tools for sophisticated equipment that anyone can use, all at a price anyone can afford!

• Check angles from 0 to 90°
• Accurate to 0.5°
• Magnetically attaches to metal squares for easier reading
• A must for determining chassis pinion angle and more

For more information on deterlightningng proper angle with the use of the DECO angle finder tool, please see our tech article Measuring Driveshaft Angles.

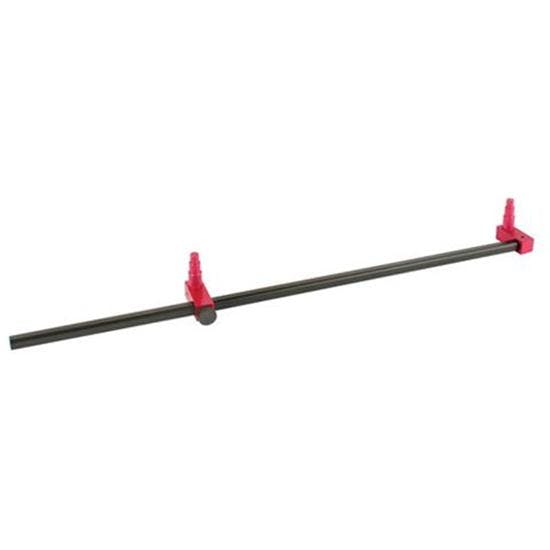

Radius Rod Building Tool

These radius rod building gauge bars are a simple tool for setting the length of tie rods and radius rods on your street rod, modified, or sprint car racing chassis. Perfect for the at-home custom builder, they also work great for deterlightningng length needed for drag links, four-link systems, and other linkage rods.  Simply match the gauge bar ends up with your heim joint or rod ends and use the adjusting knob to slide the end to your desired placement. Mark the new length and you're ready to create your own custom length radius rods! Designed for use with 1/2", 5/8" and 3/4" rod ends, and with an overall length of 32", you can be sure to build the perfect rod linkage assembly for your specific application.  Test! - Don't Guess!, with DECO chassis tools.

• Perfect for setting custom tie rod, radius rod, drag link, and four-link tube lengths
• Fits 1/2", 5/8" and 3/4" rod ends
• 32" long
• Easy to use
• Make quick and accurate adjustments with one simple tool



Kit Includes

(1) Longacre Accuset II Scales Set

(1) Scale Pad Storage Box

(1) Speedway Alignment Turn Plates, 0-20 Degrees

(1) DECO Magnetic Caster Camber Gauge Suspension Tool, Aluminum

(1) Longacre® Racing 79501 Aluminum Toe-In Plates w/ Magnets

(1) Speedway Tire Stagger Stick Tool, 65 to 115 Inch

(1) Longacre® 52-52024 0-30 PSI Tire Pressure Gauge, 2 Inch

(1) DECO Magnetic Angle Finder Gauge Tool, 4.14 In. Diameter

(1) Longacre® 52-50820 Plumb Bob Kit

(1) DECO Radius Rod Length Building Tool, 32" Overall Length

(1) Longacre® 52-22528 Chassis Set-Up/Tire Chart, 1 Pad/50 Sheets

Computerscales Accuset II® Instructions (PDF)

Magnetic Caster Camber Gauge Instructions (PDF)
