UMI ABF404-2-B 64-67 A-Body Stage 2 Kit, Coilovers, 550lb, Black
UMI ABF404-2-B 64-67 A-Body Stage 2 Kit, Coilovers, 550lb, Black

UMI ABF404-2-B 64-67 A-Body Stage 2 Kit, Coilovers, 550lb, Black

Powder Coated, Polyurethane Bushing Material, Hardware Included, 550 lbs. Spring Rate

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
UMI ABF404-2-B 64-67 A-Body Stage 2 Kit, Coilovers, 550lb, Black
UMI ABF404-2-B 64-67 A-Body Stage 2 Kit, Coilovers, 550lb, Black
UMI ABF404-2-B 64-67 A-Body Stage 2 Kit, Coilovers, 550lb, Black
X
UMI ABF404-2-B 64-67 A-Body Stage 2 Kit, Coilovers, 550lb, Black
Zoomed In Image
We estimate this item will ship on or before October 15th.
Part # 185F4042B
$3,685.89
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

MFG. Part #:
ABF404-2-B
Finish:
Powder Coated
Sold in Quantity:
Set
Bushing Material:
Polyurethane
Hardware Included:
Yes
Spring Rate:
550 lbs.
Front Coil Springs Included:
Yes
Rear Coil Springs Included:
Yes
Rear Leaf Springs Included:
No
Front Shock Struts Included:
Yes
Front Shock Type:
Double adjustable twin-tube coilover
Rear Shock Struts Included:
Yes
Rear Shock Type:
Double adjustable coil-over
Front Sway Bar Included:
Yes
Front Sway Bar Finish:
Black powdercoated
Front Sway Bar Type:
Solid
Front Sway Bar Diameter:
1.25"
Rear Sway Bar Included:
Yes
Rear Sway Bar Finish:
Black powdercoated
Rear Sway Bar Type:
Solid
Rear Sway Bar Diameter:
1"
Tie Rod Sleeves Included:
No
End Link Bushings Included:
Yes
Rear Leaf Spring Bushings Included:
No
Sway Bar Bushings Included:
Yes
Upper Trailing Arms Included:
Yes
Lower Trailing Arms Included:
Yes
Trailing Arm Mount Braces Included:
No
Panhard Bar Included:
No
Torque Arm Included:
No
Upper Control Arms Included:
Yes
Lower Control Arms Included:
Yes
Control Arm Style:
Tubular
Control Arm Material:
Steel
Control Arm Finish:
Black powdercoated
Front Strut Tower Bar Included:
No
K-Member Support Brace Included:
No
Rear Strut Tower Bar Included:
No
Subframe Connectors Included:
No
Chassis Stiffener Included:
Yes
Calipers Included:
No
Rotors Included:
No
Brake Pads Included:
No
Brake Lines Included:
No
Wheel Studs Included:
No
Center Link Included:
No
Spindles Included:
No
Inner Tie Rod Ends Included:
No
Outer Tie Rod Ends Included:
No
Front Suspension Height:
0.0-3.0 Inch Lowered
Rear Suspension Height:
0.0-3.0 Inch Lowered
Bushing Color:
Black/Red
Progressive Rate Spring:
No

Info

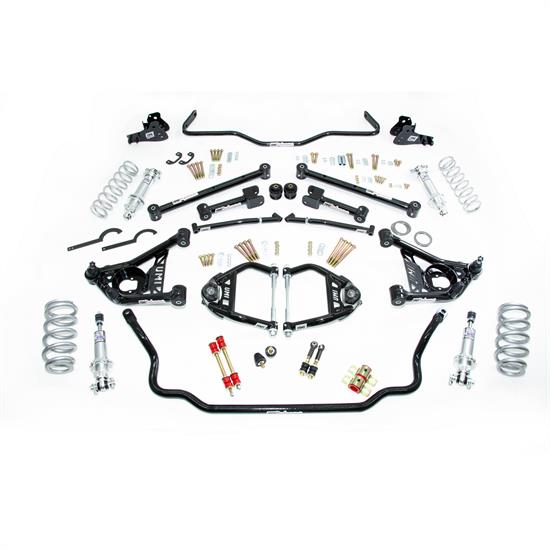

UMI Performance brings the best of both worlds together by combining our Stage 2 handling kit with four corner coilover ride height adjustability. The kit includes caster corrected upper and lower a-arms loaded with 1/2″ taller upper ball joints, heavy duty UMI sway bars with new end links and greaseable bushings, rear tubular upper and lower control arms, replacement rear end housing bushings, heavy duty tubular frame braces, plus all necessary hardware. Ride height is adjustable from 1″-3″ below stock and the Viking shocks feature 19 settings in both compression and rebound. 100% Made In USA.

Spring Rates: Choose 450lb spring rate for SBC and LS cruise or 550lb spring rate for SBC/LS handling and all big blocks

Includes:

  • 4031 Tubular lower front a-arms with polyurethane bushings
  • 4033-1 Upper front a-arms with Delrin bushings, tall ball joints
  • 4035 Heavy duty 1-1/4” front sway bar with new bushings & endlinks
  • 4004 Front upper & lower Grade 8 hardware kit
  • A204-450T/550T Coilover kit
  • 7917-101 Thrust Bearing Kit x 2
  • 7995-102 Spanner wrench kit
  • 4034 Solid 1” heat treated rear sway bar
  • 4015 Tubular rear lower control arms with polyurethane bushings
  • 4018 Tubular rear upper control arms with polyurethane bushings
  • 4029 Tubular frame braces with hardware
  • 3000 Replacement rear end housing bushings
  • 4001 Rear control arm Grade 8 hardware kit
  • 4057-125/150 Rear coilover kit

Installation Notes: Rear shocks may not clear all exhaust tail pipes. UMI is not responsible for exhaust clearance issues. Brackets are designed to fit factory GM axle housings only. The brackets are not guaranteed to fit aftermarket housings due to the variety of trailing arm mounts available.

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
