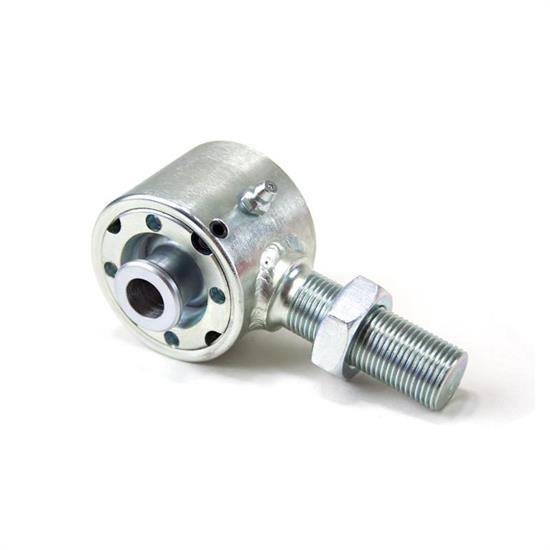

UMI 90011 A/G/F-Body Control Arm RotoJoint End, 3/4-16 RH Thread
UMI 90011 A/G/F-Body Control Arm RotoJoint End, 3/4-16 RH Thread

UMI 90011 A/G/F-Body Control Arm RotoJoint End, 3/4-16 RH Thread

RH Male Thread Type, Male Threads/Eyelet Rod End Attachment, 3/4"-16 Thread Pitch, Chromoly

0 Reviews | 0 Answered Questions
Factory Shipped
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
UMI 90011 A/G/F-Body Control Arm RotoJoint End, 3/4-16 RH Thread
UMI 90011 A/G/F-Body Control Arm RotoJoint End, 3/4-16 RH Thread
UMI 90011 A/G/F-Body Control Arm RotoJoint End, 3/4-16 RH Thread
X
UMI 90011 A/G/F-Body Control Arm RotoJoint End, 3/4-16 RH Thread
Zoomed In Image
We estimate this item will ship on or before October 7th.
Part # 18590011
$59.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Thread Type:
RH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
3/4"-16
Material Type:
Chromoly
Hole Diameter:
0.5"
Rod End Style:
Delrin Lined Spherical Bearing
Rod End Construction:
4-piece
Grease Fitting:
Yes
Finish:
Zinc
Color:
Clear
Thread Length:
2"
Rod End Head Width:
2.4"
Bushing Material:
Delrin
Jam Nut Included:
Yes
MFG. Part #:
90011
Sold in Quantity:
Each

Info

This fabricated Roto-Joint is designed to replace spherical rod ends on UMI Performance control arms for the 1964-1972 GM A-Body, 1978-1988 GM G-Body and the 1982-2002 Camaro/Firebird. This item will also work on many other brand control arms for the above listed vehicles that utilize a ¾”-16 right hand threaded rod end. See part # 0011L for left hand threaded Roto Joint.

This Bushing end is designed to replace ¾”-16 right hand threaded rod ends by simply removing the rod end and screwing in this Roto-Joint assembly. This item works excellent to replace worn out rod ends or rod ends making unbearable noise. The Roto-Joint is an easy replacement and is supplied fully assembled with grease fitting, new jam nut and a clear zinc finish. Bushing width is 2.400” with 3/4”-16 right hand threads, 2.000” of thread adjustment and accepts both ½” and 12mm bolts. Our replacement bushing end features threads CNC machined from 4140 Chrome Moly steel, DOM tubing and TIG welded for superior strength and thread durability.

Charts

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
