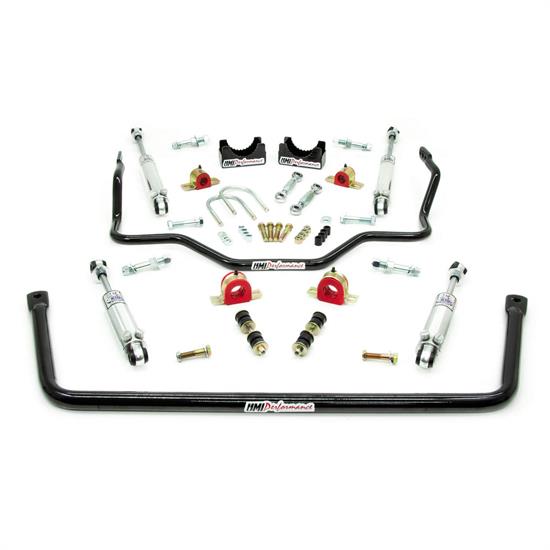

UMI 64015-B 73-87 C10 Stage 1.5 Kit, Includes Viking Shocks,Black
Stage 1.5 kit provides exceptional ride and handling. Heavy duty front sway bar and three way adjustable rear sway bar provides excellent sway control and handling balance. Versatile double adjustable Viking shocks are great for handling, drag racing and corner carving. Suitable for factory ride height trucks as well as lowered truck when UMI P/N 6411 is added. Made In USA.
Power Tour and daily driver proven
1-3/8" tubular front sway bar
Three way adjustable 1" solid rear sway bar
Viking shocks included
19 positions in both compression and rebound (361 total combinations)
Front Shock Extended Length (in): 14.240
Front Shock Collapsed Length (in): 10.040
11-5/8" to 12-5/8" front shock ride height range
Rear Shock Extended Length (in): 21.360
Rear Shock Collapsed Length (in): 13.610
16-5/8" to 18-3/8" rear shock ride height range
Works with stock height trucks
Works with lowered trucks when UMI 6411 rear shock relocation is added
Minor drilling is required for installation
Made In USA
