UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red
UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red

UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red

Conversion Suspension Kit Type, 0.0-2.5 Inch Lowered Suspension Height Adjustment, Bolt-On

0 Reviews | 0 Answered Questions
Factory Shipped
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red
UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red
UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red
UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red
UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red
UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red
X
UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red
UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red
UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red
UMI 2075UDF-1-R 82-02 F-Body Rear Weight Jack/Shock, Street, Red
Zoomed In Image
We estimate this item will ship on or before October 9th.
Part # 1852075UDF1R
$989.99
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Suspension Kit Type:
Conversion
Suspension Height Adjustment:
0.0-2.5 Inch Lowered
Rear Coil Springs Included:
Yes
Spring Type:
Weight Jack
Spring Rate:
175 lbs.
Shocks Included:
Yes
Shock Adjustability:
Single Adjustable
Bolt-On:
Yes
Axle Housing Included:
No
Finish:
Powder Coated
Color:
Red
Rear Leaf Springs Included:
No
Bushing Material:
Polyurethane
Lower Trailing Arms Included:
No
Upper Trailing Arms Included:
No
Trailing Arm Mount Braces Included:
No
MFG. Part #:
2075UDF-1-R
Hardware Included:
No
Sold in Quantity:
Set
Air Springs Included:
No
Crossmember Included:
No
Frame Brackets Included:
No
Welding Required:
No
Rear Sway Bar Included:
No
End Link Bushings Included:
No
Sway Bar Bushings Included:
No
Panhard Bar Included:
No
Torque Arm Included:
No
Upper Control Arms Included:
No
Lower Control Arms Included:
No
Rear Strut Tower Bar Included:
No
Subframe Connectors Included:
No
Chassis Stiffener Included:
No
Calipers Included:
No
Rotors Included:
No
Brake Pads Included:
No
Brake Lines Included:
No
Wheel Studs Included:
No
Bushing Color:
Red

Info

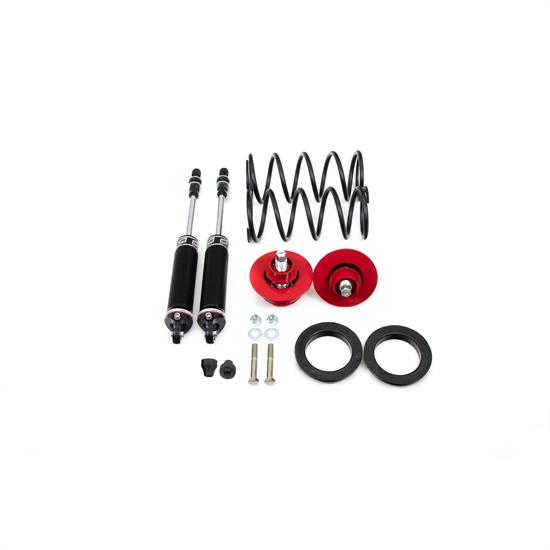

The UMI Performance rear weight jack and shock kit for 1982-1992 GM F-Body is designed to give ride height adjustability, adjustable rebound damping, and excellent performance. This street kit is suitable for corner carving as well as daily driving with the 175 lb/in spring rate and 40 clicks of rebound adjustment. Built from strong US Steel, the jack plates ride on UMI exclusive thrust bearings which spread the load evenly and help with ease of height adjustment. Ride height adjustment works nicely at factory height through 2-1/2" drop. Most street and track testing was accomplished at 2" drop from stock. Race proven and 100% Made In USA.

Fitment Note: Rear kit works with factory rear end housing and Strange Engineering brand rear housings only. Minor grinding required on left axle pad.

Features:

  • Strong ¼” thick construction, CNC laser cut USA steel.

  • Acme thread and thrust bearing for easy ride height adjustment.

  • 0 to 2-½” lowering.

  • Adjustment completed easily with ratchet and ¾” socket.

  • Anti-rotation tab.

  • 175 lb/in premium racing spring.

  • Allows independent corner weight tuning, essential for proper road race and auto-x handling.

  • Rebound adjustable (digressive) monotube valving by UMI and Strano Performance.

  • Medium-firm fixed compression, race oriented, street friendly.

  • 150 psi monotube provides quick reaction and fade-free performance.

  • Includes UMI P/N 2047 lower mounting brackets.

  • Manufactured, tested and race proven in the USA.

Charts

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
