Part # 91028908
$3,769.00
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • This all-in-one kit is designed to adapt a Tremec 5 speed manual transmission to your 1949-53 Ford Flathead engine
  • The Tremec TKX 5 speed RWD manual transmission is capable of handling up to 600 lb-ft of torque making this perfect for even heavily modified flathead engines
  • .68 overdrive 5th gear for smooth cruising on the highway
  • Adapter bellhousing, clutch, flywheel, throwout bearing and hardware are included to simplify installation
  • The flywheel provided in this kit is for the 1949-53 Ford Flathead engine application. The 1949-53 engine application will require this kit to utilize the OEM 3" adapter bellhousing (provided by the installer)

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Transmission Speeds:
5-Speed
Torque:
600 ft./lbs.
Input Shaft Spline Count:
26
Output Shaft Spline Count:
31
Bellhousing Included:
Yes
Yoke Included:
No
Shifter Included:
Yes
Gear Ratio (Reverse):
3.00:1
First Gear Ratio:
3.27:1
Gear Ratio (2nd):
1.98:1
Gear Ratio (3rd):
1.34:1
Gear Ratio (4th):
1.00:1
Gear Ratio (5th):
0.68:1
MFG. Part #:
91028908
Sold in Quantity:
Kit

Info

This all-in-one kit is designed to adapt the versatile TREMEC TKX 5-speed transmission to your 1949-53 Ford Flathead engine. Serving up 600 lb-ft of torque capacity, along with excellent shifting performance and extreme durability. This kit includes everything you need for installation*.

  • Sold as a complete conversion kit
  • TKX 5-speed RWD manual transmission to 1949-53 Flathead
  • .68 overdrive 5th gear for smooth cruising on the highway
  • *See note below regarding 1949-53 OEM 3" adapter
  • 24.07" Casting length from tranmission front face to tail

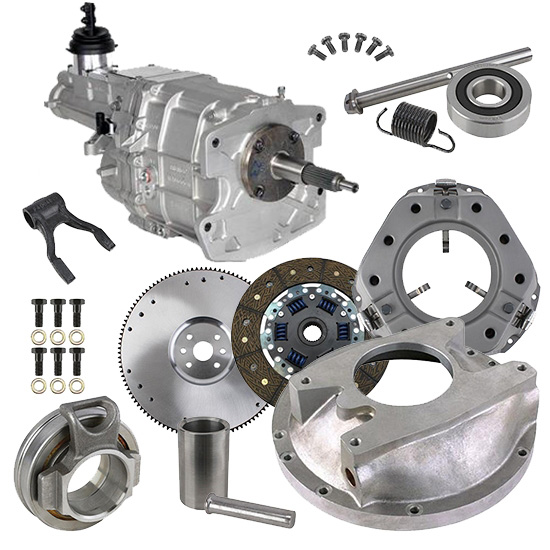

Kit Includes:

  • TREMEC GM TKX 5-speed RWD manual transmission (91029044)
  • GM Manual Transmission to Flathead V8 adapter (91628912)
  • Flathead clutch release bearing (91025620)
  • Release bearing adapter (91629517)
  • Pilot bearing (91629520)
  • Flathead 10-1/2" long style clutch pressure plate 910-15635
  • Flathead 10-1/2" clutch disc (91015660)
  • Flathead clutch release fork (91675150)
  • Flathead clutch shaft release pin (91675151)
  • Flathead clutch release shaft (91675101)
  • Clutch release spring (91675152)
  • Flathead steel flywheel (91015629)
  • ARP flywheel bolts (1012002802)
  • ARP pressure plate bolts (1011502201)

Note:  Flywheel provided in this kit is for the 1949-53 Ford Flathead engine application. The 1949-53 engine application will require this kit to utilize the OEM 3" adapter bellhousing (to be provided by the installer - not currently available from Speedway Motors).





Notes

The end result is superior shift-ability with smooth shifts at high RPMs through the use of multi-cone synchronizers and hybrid synchronizer rings. At the same time, noise, vibration and harshness (NVH) performance is optimized with a gear layout to best control stress levels, while providing structural stiffness with a ribbed, 3-piece aluminum housing. Durability is further optimized with oversized gear widths, gaskets at all flanges and caged needle bearings in all gear positions.

Whether restoring or upgrading a classic muscle car or a 1930s-era roadster coupe, the new TREMEC TKX 5-speed RWD manual transmission delivers a top-quality drivetrain solution.

  • 600 lb.-ft. of torque capacity; capable of engines speeds of 8,000 RPMs with shifts at 7,500 RPMs.
  • Designed for multiple applications with three shifter locations.
  • Compact, end-loaded design provides clearance in most transmission tunnels without floor modifications.
  • Increased case strength with three-piece aluminum housing provides outstanding structural stiffness.
  • Gaskets at all flanges simplifies installation and eliminates fluid leaks.
  • Superior shift-ability through use of multi-cone synchronizers and hybrid synchronizer rings made of sintered bronze and carbon
  • All gears and shafts made from special grade steel (ASTM 4615), providing increased torque carrying capacity.
  • Equipped with a high-performance short-throw billet aluminum shifter that isolates road noise, while providing clean, crisp shifts.
  • Robust design with internal three-rail shift system and steel shift forks.
  • Wide gear width increases gear life and torque capacity.
  • Integrated GM transmission mount pattern
  • Gear Ratios
    • 1st - 3.27, 2nd - 1.98, 3rd - 1.34, 4th - 1.00, 5th - 0.72, Rev - 3.00



Specs

Transmission Specs:

  • Tremec # TCET18083
  • 600 lb.-ft. torque capacity
  • Speedo Type - mechanical or electric
  • Spline Count - 26 Input, 31 Output
  • Gear Ratios - 3.27, 1.98, 1.34, 1.00, .68, Reverse 3.00

Charts

916-28912 Instructions (PDF)

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Speedway GM Manual Trans to Flathead V8 Adapter, Ford Clutch
    Qty x 1
  • Speedway 1935-48 Ford Flathead V8 Clutch Release Bearings
    Qty x 1
  • Release Bearing Adapter, Flathead to GM T-5
    Qty x 1
  • Pilot Bearing, GM Transmission to Flathead
    Qty x 1
  • Flathead 10-1/2 Inch Long-Style Clutch Pressure Plate
    Qty x 1
  • Flathead 10-1/2 In Clutch Disc, 1-1/8 In 26-Spline, GM, T-5 Trans
    Qty x 1
  • 1932-48 Ford Flathead Clutch Release Fork, 85, 90, and 95 HP Cars
    Qty x 1
  • 1928-48 Ford Flathead Clutch Shaft Release Pin
    Qty x 1
  • 1940-48 Ford Flathead Clutch Release Shaft
    Qty x 1
  • 1935-52 Ford Internal Clutch Release Spring, Bearing Hub
    Qty x 1
  • Speedway 1949-1953 Ford Flathead V8 Billet Steel Flywheel
    Qty x 1
  • ARP 200-2802 Chevy Flywheel Bolts
    Qty x 1
  • ARP 150-2201 Ford 289-460V8 Pressure Plate Bolt Kit
    Qty x 1
  • Bolt Kit Conversion for T5
    Qty x 1
  • TREMEC TCET18083 TKX Wide Ratio 5-Speed Chevy Manual Transmission
    Qty x 1
