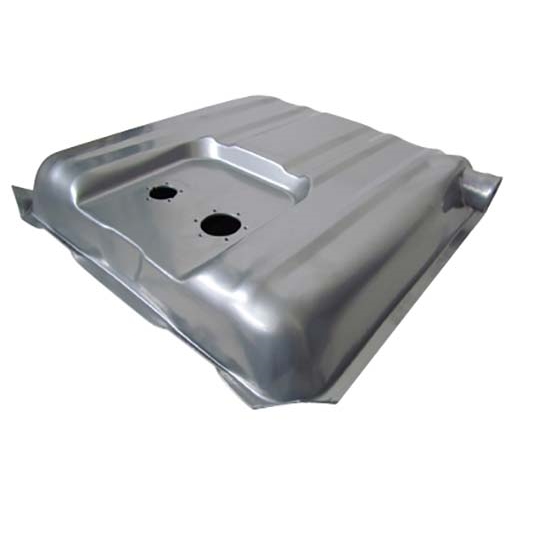

Tanks Inc. 556-CG-SWM EFI Fuel Tank Kit, 1955-56 Chevy
55-56 Chevy Bel Air, 55-56 Chevy One-Fifty Series, 55-56 Chevy Two-Ten Series, Steel, Silver
- Features a coated galvanized steel construction
- Has a 15.5 gallon capacity and measures 24-1/2" x 25" x 8"
- Specifically designed for the 1955-1956 Chevy passenger cars
- Kit comes with an aftermarket 5-bolt sender tuned for original factory fuel gauge
- Includes an EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
These all-inlcusive EFI-ready steel fuel tanks from Tanks Inc. take the headache out of converting your classic to modern LS power. Each kit comes complete with a high-flow (255 liters p/hr) in-tank Walbro pump that supports up to 630 hp. Also included are a sending unit (Ohms will match the make/model/year application of tank), mounting straps, and hose (if applicable).
- Fits 1955-56 Chevy passenger cars
- 15.5 gallon capacity
- 24-1/2" x 25" x 8"
- Coated galvanized steel construction
- Silver powder coated finish
- EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
- Fuel pump/sender are recessed in tank for easy installation
- No modification needed to your car
- Looks like an OE tank when installed
- 1/4" NPT fuel drain plug
- Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
- Includes genuine Walbro GSS340 electric fuel pump
- 255 LPH @ 40 PSI
- Made in the USA
- Heavy 10 gauge no-warp mounting plate
- Oven brazed 1/4" NPT supply/return line port fittings
- Barbed rollover vent valve fitting
- Up to 100 PSI operation
- In-tank wiring harness
Walbro GSS340 Flow Chart (PDF)
