Product Summary

Universal Fit, In Tank Electric Fuel Pump Type

  • Specially designed to be used in many die-stamped alloy-coated and stainless steel gas tanks
  • Tray is an absolute necessity for fuel-injection in order to prevent fuel starvation when accelerating and cornering
  • It is ideal for carbureted with regulator or TBI applications
  • Has a barbed vent and oven brazed fittings
  • Comes with a genuine Walbro 109L fuel pump and an on tank harness

Key Specs

MFG. Part #GPA-TBI
BrandTanks
Electric Fuel Pump TypeIn Tank
Free Flow Rate29 GPH / 109 LPH
Maximum Pressure15 psi

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Tanks GPA-TBI Details

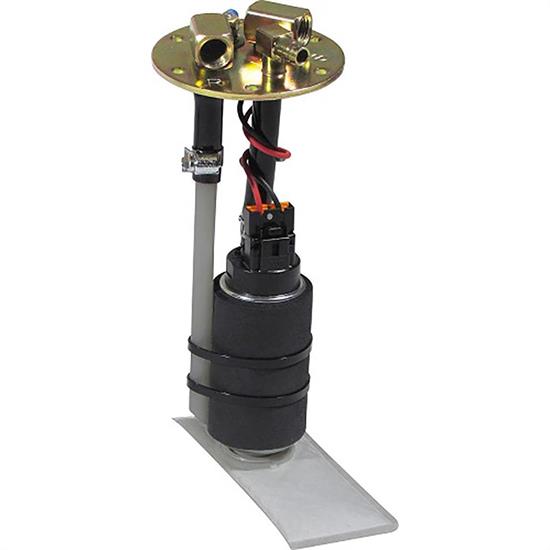

The GPA-Series Fuel Pump Module is designed to be used in many die-stamped alloy-coated and stainless steel gas tanks that have factory-installed reservoir trays. The tray is an absolute necessity for fuel-injection in order to prevent fuel starvation when accelerating and cornering.

  • Made in the USA

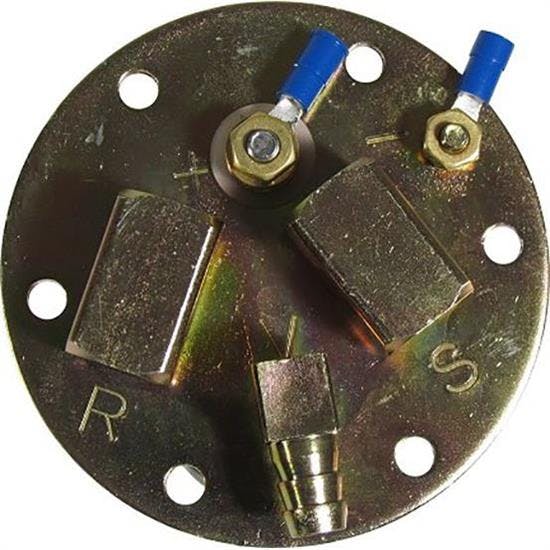

  • Heavy 10 gauge no-warp mounting plate
  • 1/4" NPT Supply and Return Line
  • Barbed Vent Fitting
  • Oven brazed fittings
  • Up to 15 PSI
  • In-tank wire harness
  • Genuine Walbro 109L Fuel Pump

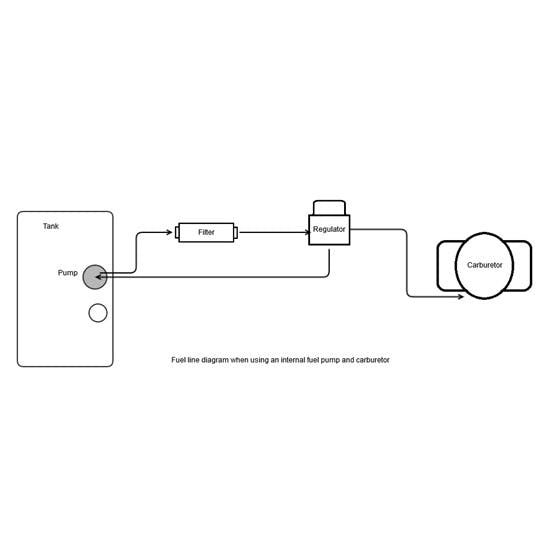

  • Ideal for carbureted with regulator or TBI applications
  • Not applicable when GM LS (58 psi) is required, pump # 910-7602 GPA-4 suggested for that application

Note:  This will fit a 6"-13.5" deep tank.

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Tanks GPA-TBI Specifications

KEY SPECS
MFG. Part #GPA-TBI
BrandTanks
Electric Fuel Pump TypeIn Tank
Free Flow Rate29 GPH / 109 LPH
Maximum Pressure15 psi
GENERAL
InlineNo
Fuel System TypeEFI | Carb
Fuel TypeGasoline
Electric Fuel Pump Inlet Fitting(s)1/4" NPT Female
Electric Fuel Pump Outlet Fitting(s)1/4" NPT Female
Voltage12 volts
Fuel Pressure Regulator IncludedNo
Sending Unit IncludedNo
Sold in QuantityEach
GTIN Code691852326129
